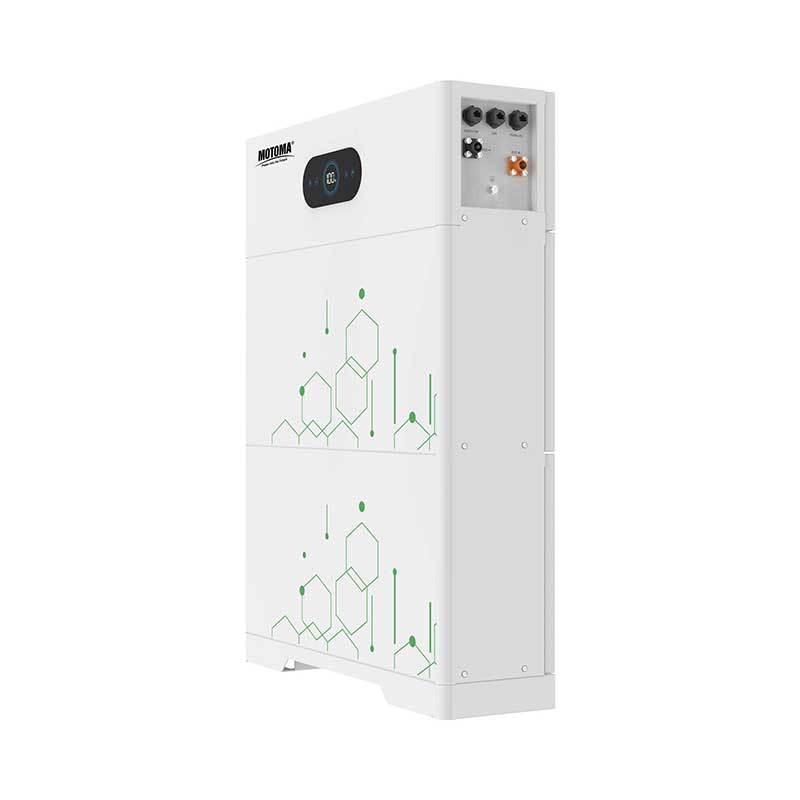

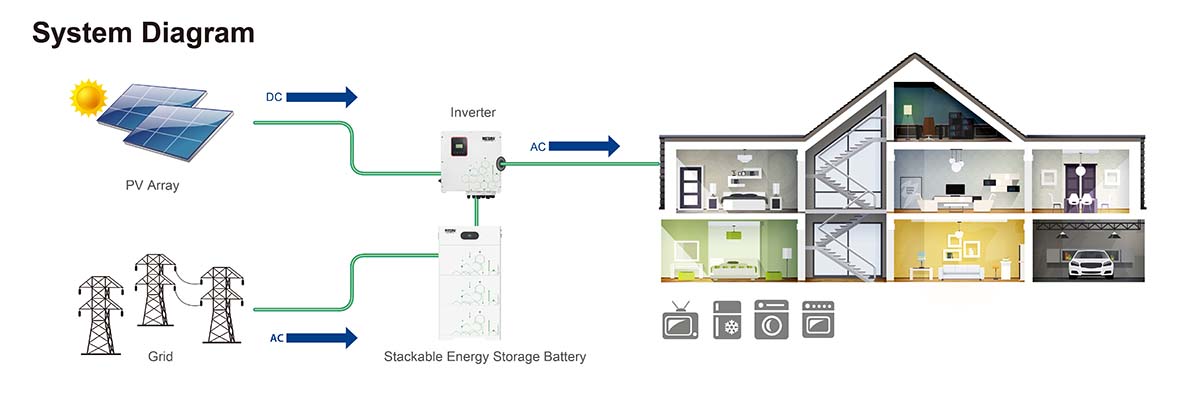

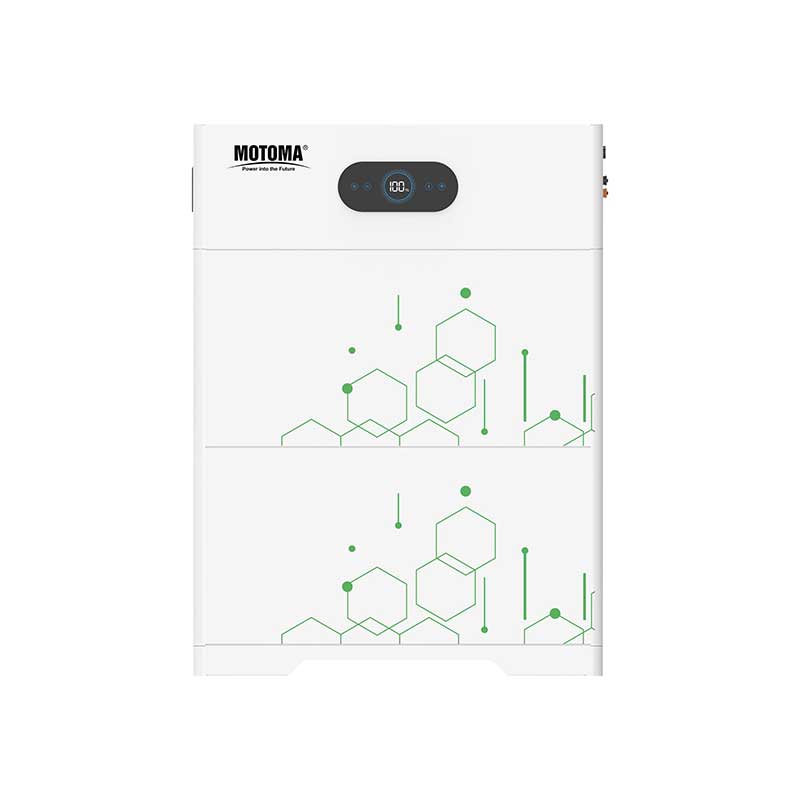

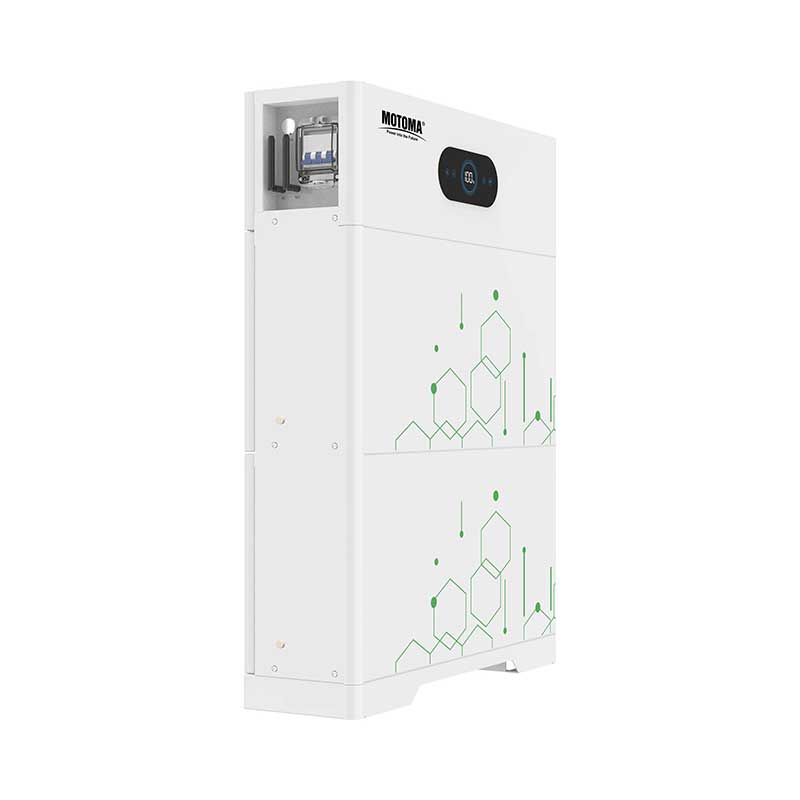

The system integrates expandable lithium-ion battery modules group, and hybrid solar inverter into one unit to offers an economical and self-sufficiency solution allowing the owners to store excess clean solar energy during the daytime to power their residential appliances at night. The System include an easily scalable lithium-ion battery modules for energy expansion which is lighter and has a compact/elegant design.
Technical Parameters:
| Battery model | High Voltage 10kWh |
| Nominal voltage | 204.8V |
| Nominal capacity | 50Ah |
| Power capacity(Wh) | 10.24kWh |
| Operating volt. range | 147.2V-230.4V |
| Max. charging current | 52A |
| Max. discharging current | 52A |
| Charging temperature range | -10℃~45℃ |
| Discharging temperature range | -20℃~60℃ |
| Dimension (L x W x H) | 655*189*880mm |
| Unit weight | 114.5Kg |
| IP Level | IP65 |
| Cell Cycle Life | 6000 times |
| Communication | CAN/RS485 |
Application:
Solar/wind energy storage
Home/ Residential Solar System
Solar Storage System
Solar Energy System
Household off-grid solar systems
Certificates:
ISO9001/ CE-EMC/ IEC62620/ UL1973/ MSDS/ UN38.3 etc.
