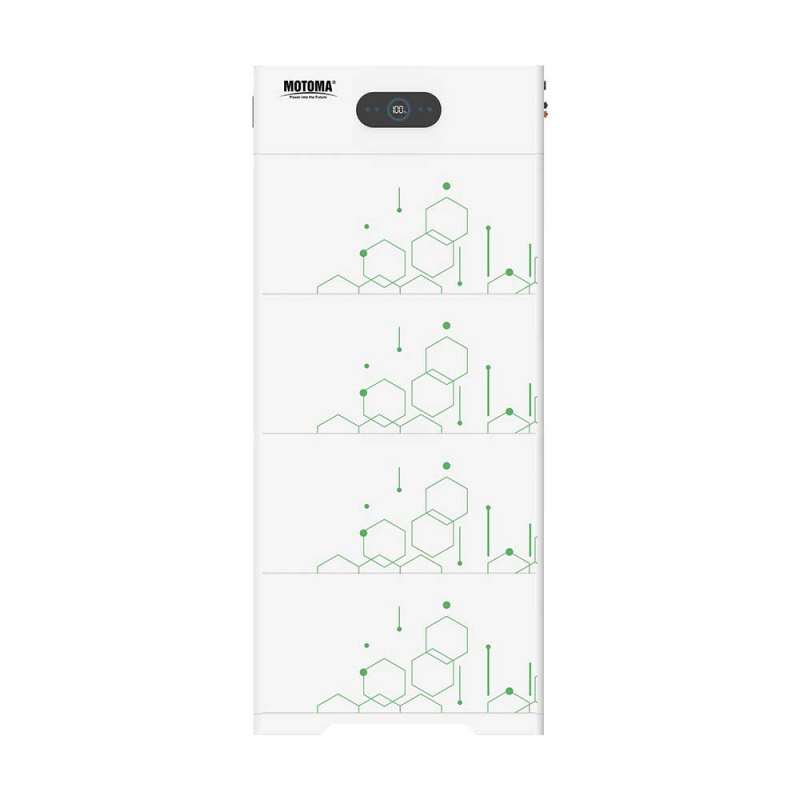

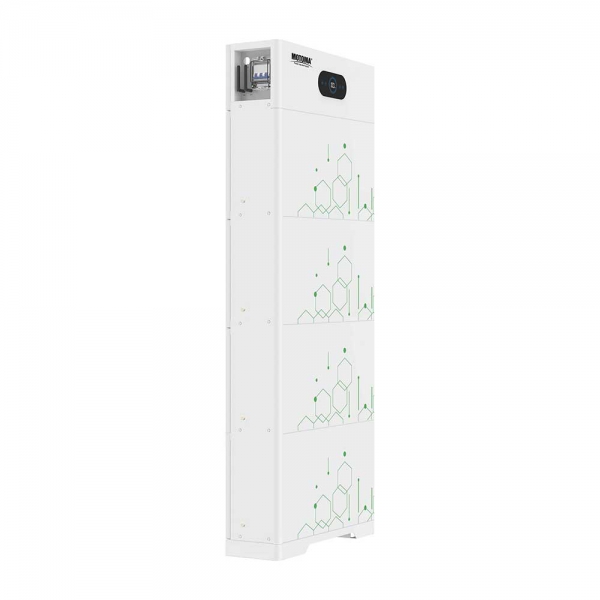

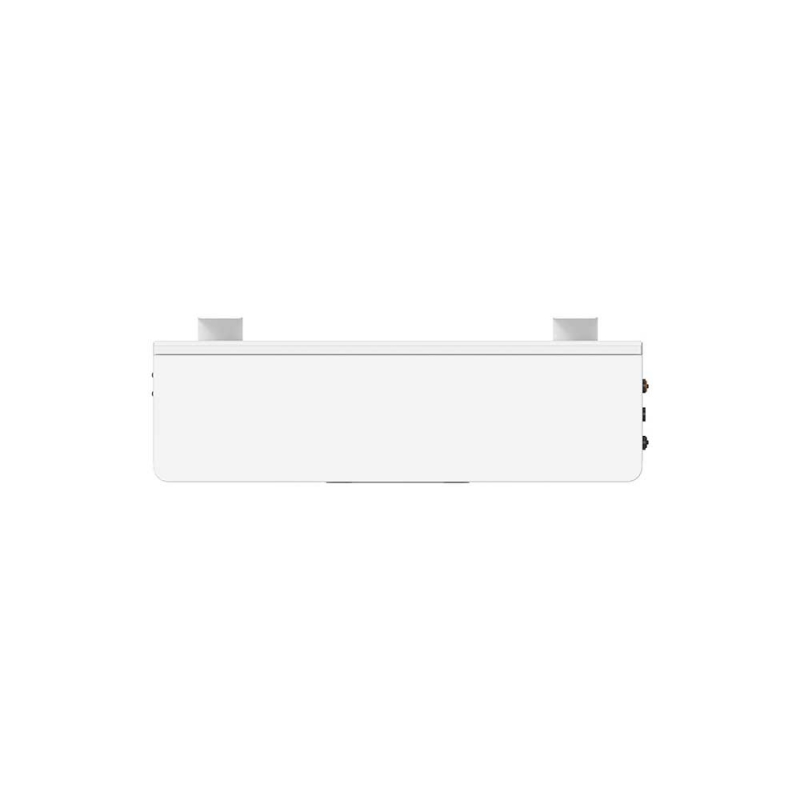

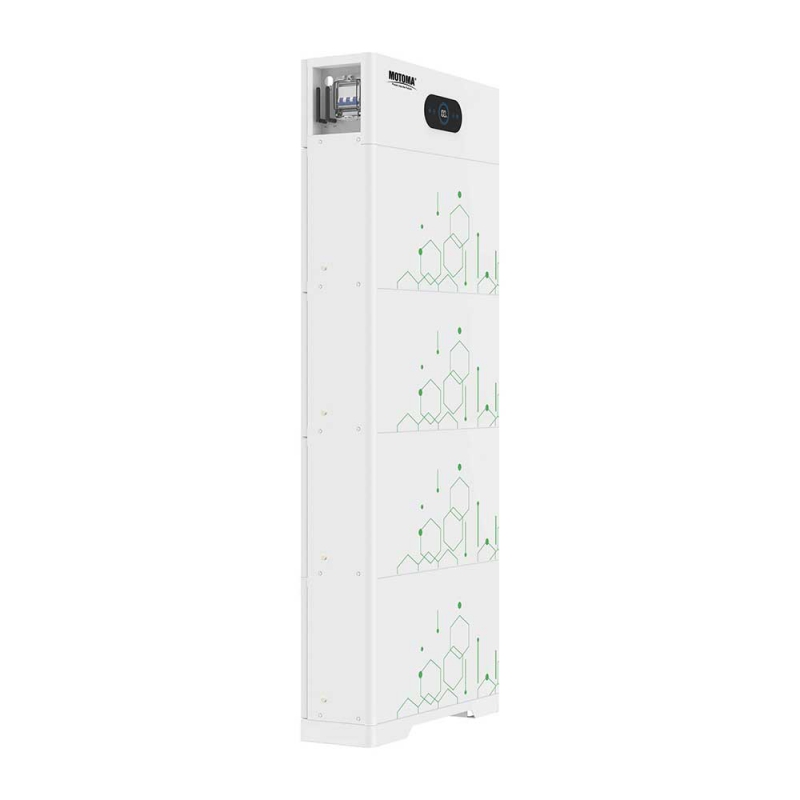

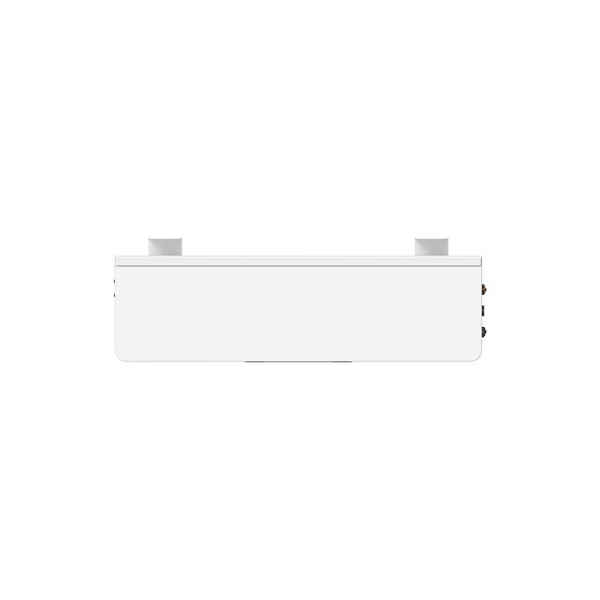

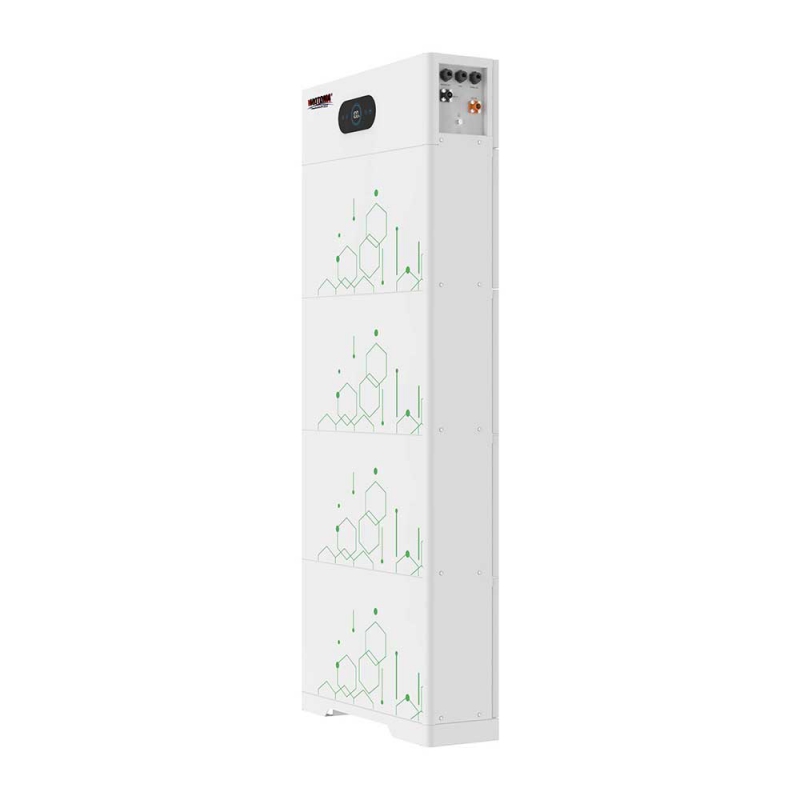

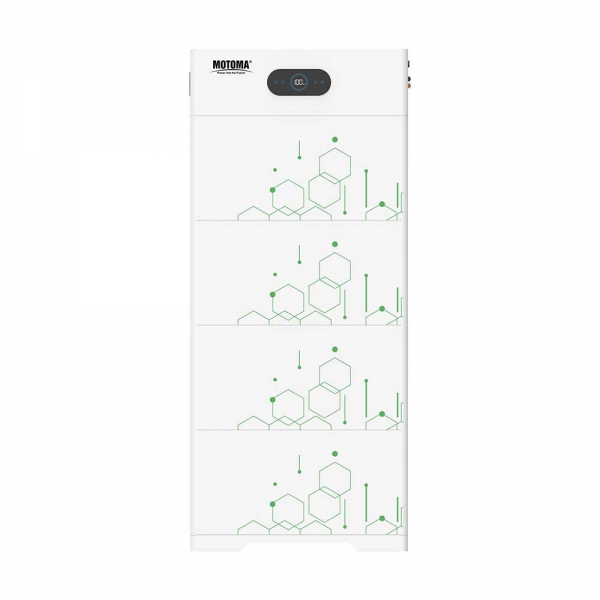

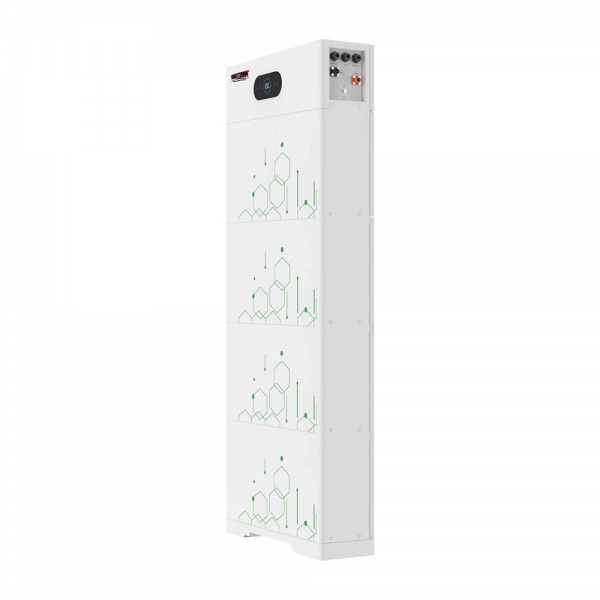

The Smart ESS Unit – M50-100 stands as an all-inclusive PV ESS Converter, meticulously crafted for unparalleled performance and durability. It boasts a cutting-edge Long-Life Lithium battery housing superior Grade A+ LiFePO4 cells. This unit seamlessly integrates a sophisticated Battery Management System (BMS), a versatile Hybrid inverter, and an advanced Energy Management System (EMS). Complemented by a temperature control system, comprehensive fire protection, and efficient load distribution, this compact powerhouse offers an AC output of 400VAac, catering to diverse applications. Excelling in power expansion and backup supply, it emerges as the top choice for both On-grid and off-grid environments such as mines, islands, farms, and remote villages, ensuring steadfast and sustainable energy provision in challenging conditions.
Overview:
Technical Parameters:
| Battery model | High Voltage 20kWh |
| Nominal voltage | 409.6V |
| Nominal capacity | 50Ah |
| Power capacity(Wh) | 20.48kWh |
| Operating volt. range | 294.4V-460.8V |
| Max. charging current | 52A |
| Max. discharging current | 52A |
| Charging temperature range | -10℃~45℃ |
| Discharging temperature range | -20℃~60℃ |
| Dimension (L x W x H) | 655*189*1510mm |
| Unit weight | 212.7Kg |
| IP Level | IP65 |
| Cell Cycle Life | 6000 times |
| Communication | CAN/RS485 |
Application:
Solar/wind energy storage
Home/ Residential Solar System
Solar Storage System
Solar Energy System
Household off-grid solar systems
Certificates:
ISO9001/ CE-EMC/ IEC62620/ UL1973/ MSDS/ UN38.3 etc.
