Inverter Explained - The Magic Box That Teaches DC Power to Speak AC

Why We Need Inverters

Have you ever seen solar panels on rooftops or the massive batteries in electric vehicles? These devices generate direct current (DC), where electricity flows in one direction like a straight river. However, nearly all the appliances in our homes and machines in factories run on alternating current (AC), where electricity oscillates back and forth like ocean waves. So how can we make DC power speak the "language" of AC? That’s where the inverter steps in—a technological marvel that silently powers modern life.

Core Principle: The Dance of Switches

Think of a reservoir of DC electricity—still and steady. The heart of the inverter lies in a group of high-speed electronic switches (primarily IGBTs or MOSFETs) that act like trained dancers, opening and closing in rapid patterns under the precise control of a microcontroller.

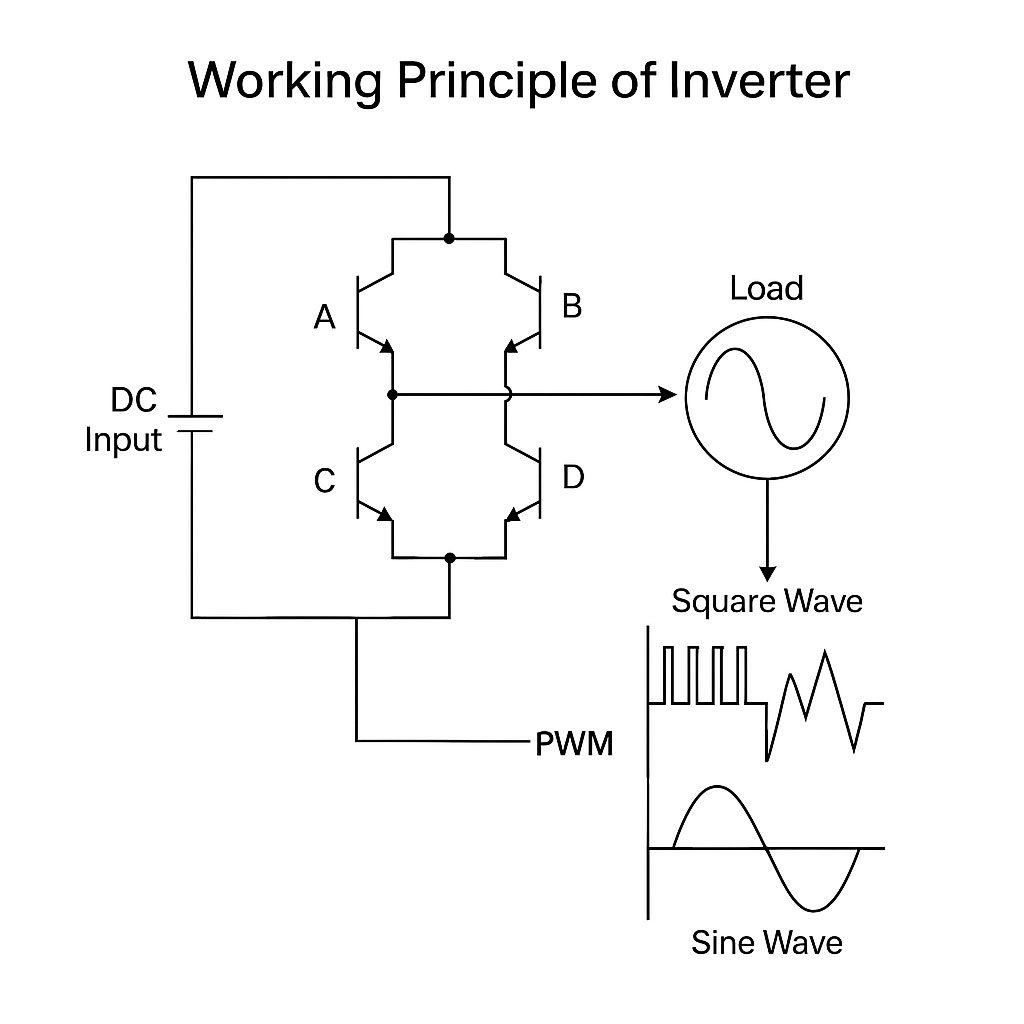

H-Bridge Switching:

An H-bridge consists of four switches—imagine them as two dancing pairs. Here‘s how the switching works:

• Positive Wave: When switches A and D are on while B and C are off, current flows in one direction, generating positive voltage.
• Negative Wave: When switches B and C are on and A and D are off, current flows in the opposite direction, generating negative voltage.

By rapidly alternating these states, the inverter creates a square wave AC output. But there’s a catch—many devices require cleaner, smoother power.

PWM: Shaping the Wave

To refine the square wave into a sine wave (like what you get from a wall outlet), inverters use Pulse Width Modulation (PWM). This technique adjusts the width of each pulse to control output voltage and, when combined with filtering circuits (inductors and capacitors), the waveform becomes a smooth, utility-grade sine wave.

Technical Pain Points and Engineering Breakthroughs

Inverters may seem simple on the surface, but building one that is efficient, durable, and cost-effective is a constant engineering challenge. Let’s explore the five major pain points—and how the industry is overcoming them.

1. Efficiency Loss

Every time power is converted, some of it turns into heat: Switching Losses: Every on/off action produces heat, especially at higher frequencies. Conduction Losses: Even fully open switches have tiny resistance that causes power loss. Magnetic Losses: Transformers and inductors experience both core (iron) and wire (copper) losses. Why it matters: Lower efficiency means more energy wasted. Improving efficiency from 95% to 98% can significantly reduce costs and boost system output. Breakthroughs: Advanced semiconductor materials like silicon carbide (SiC) and gallium nitride (GaN), smarter drive circuits, and better magnetic design.

2. Heat and Cooling

All those losses generate heat, especially in high-power inverters used in solar plants or EVs. Problem: Excess heat shortens component life, reduces reliability, and limits power density. Solutions: Use heat pipes, vapor chambers, or liquid cooling; choose heat-resistant materials like SiC/GaN.

3. Electromagnetic Interference (EMI)

High-frequency switching produces invisible electrical noise that can disrupt other electronics (like WiFi or radios) and may violate EMC regulations. Solutions: Careful PCB layout, EMI filters, shielding, and soft-switching techniques.

4. Reliability and Lifespan

Inverters often operate in harsh environments with heat, humidity, and voltage fluctuations. Issues: Electrolytic capacitors degrade, solder joints fatigue, and heat stress weakens components. Solutions: Use solid-state capacitors, weatherproof enclosures (high IP ratings), advanced thermal management, and rigorous reliability testing.

5. Cost Pressure

High-performance components (like SiC modules) and robust thermal/EMI designs raise manufacturing costs. Market Reality: Price-sensitive sectors like residential solar demand value-for-money. Solutions: Mass production, domestic component substitution, streamlined system design.

The Materials Revolution: SiC and GaN

Two next-gen semiconductor materials—Silicon Carbide (SiC) and Gallium Nitride (GaN)—are reshaping inverter design.

• Advantages: Higher voltage and temperature tolerance, faster switching, lower losses.
• Impact: Inverters using SiC can improve efficiency by 1–3%, shrink size by 30%, and reduce cooling needs—vital for EVs and utility-scale solar.

Market Trend: According to Yole Développement, the SiC power device market will exceed $6 billion by 2027, driven largely by renewable energy and EVs.

Where Inverters Are Used

Inverters are quietly powering a wide range of modern technologies:

• Solar Power: Convert solar panel DC into grid-compatible AC. (Market value in 2023: $18B+ – Wood Mackenzie)
• Electric Vehicles: Convert high-voltage DC from the battery into motor-driving AC; SiC usage is accelerating in this field.
• UPS Systems: Ensure continuous AC supply during grid outages—essential for servers and hospitals.
• Home Appliances: Inverter-based motors in AC units, refrigerators, and washing machines for energy-saving and quiet operation.
• Portable Inverters: Convert 12V/24V car DC into 220V AC—powering laptops and more on the go.

Future Trends: Smarter, Smaller, More Integrated

Inverter innovation is accelerating in exciting ways:

• Smart Functions: Integrated sensors, 4G/5G connectivity, remote monitoring, predictive maintenance.
• Solar + Storage Integration: Hybrid inverters now manage PV panels, batteries, loads, and grid interaction in one device.
• Efficiency Goals: With SiC/GaN and better control algorithms, peak efficiencies could soon reach 99.5% or more.
• Virtual Power Plants (VPPs): Networked inverters could stabilize grids by offering real-time frequency and voltage control.

Types of Inverters: Which One to Choose?

Inverters come in various forms, each tailored to specific use cases. Here‘s a breakdown:

Type	Main Application	Key Features	Specs
Grid-tied	Home/Commercial PV Systems	Must connect to grid; anti-islanding protection	1kW–300kW+, 97–99% efficiency, 1–6 MPPTs, IP65
Off-grid	Remote areas, RVs, backup power	Works without grid; battery support; voltage regulation	0.5kW–20kW, Pure/Modified sine wave, 10A–100A charging
Hybrid/Storage	Residential storage, microgrids	Manages PV, battery, grid, and loads	3kW–50kW, >94% charge/discharge, Li/Lead battery support
Microinverter	Household PV, complex roofs	One per panel; high safety; no single point of failure	250W–2000W, 96–97% peak efficiency, 25+ years lifespan

Note: Prices based on 2024 averages and vary by brand, features, and scale. Higher power units tend to cost less per watt.

The Silent Translator of Modern Energy

Inverters are the invisible translators and energy managers behind the global shift to clean electricity. From reducing energy loss to solving heat and EMI issues, engineers continue to push the boundaries of performance and reliability. With the rise of SiC and GaN, these compact devices are becoming more efficient, smarter, and central to future power systems. Understanding how inverters work helps us appreciate the flow of electricity that powers our world—and the innovation that makes it possible.
