High Capacity Battery
    MOTOMA battery
  • motoma battery

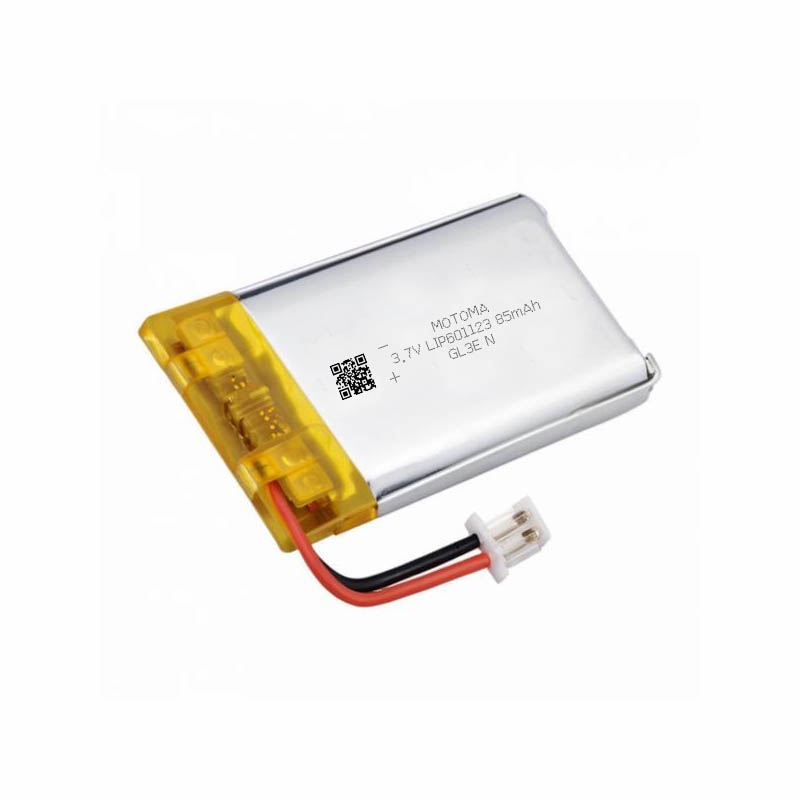

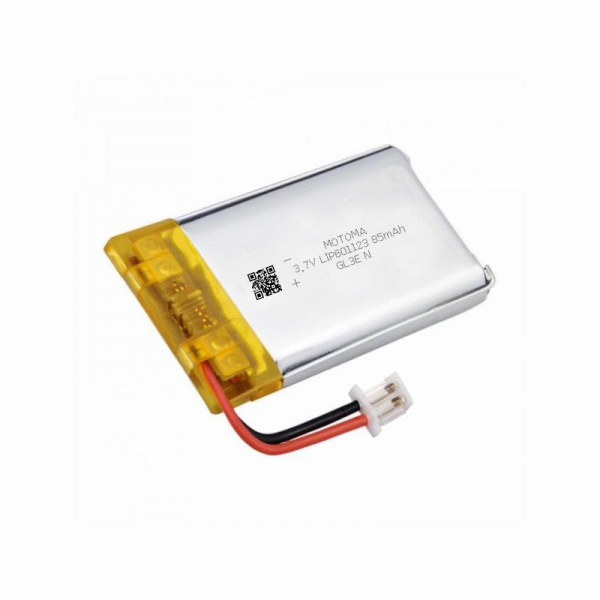

85mAh lithium polymer battery 3.7V 3.8 7.4 11.1 V customizable 601123

  • Voltage: 3.7V  (customizable)
  • Capacity: 85 mAh (customizable)
  • Volume energy density can reach 500Wh/L – 620Wh/L
  • Excellent safety performance
  • Small and light-weight
  • In series connection or in parallel connection is allowed
  • UL, IEC62133, UN38.3, CB, CQC, PSE approved
  • Battery Chemistry: Lithium Ion Polymer
  • Battery Terminations:   JST PH1.25, PH2.0, USB-C, FPC, FFC, and more.
  • Battery Customizing: Custom design shape and size is available, lipo battery cell pack.
Inquiry
Description
Downloads
Video
Applications

85mAh lithium polymer battery 3.7V 3.8 7.4 11.1 V customizable 601123


Product Description:
A highly compact 85mAh lithium polymer battery ideal for miniaturized electronics where space and weight are critical factors.

Product Specifications:

  • Dimensions: 6.0 × 11 × 23 mm

  • Capacity: 85mAh

  • Charge Current: 0.5C

  • Discharge Current: 0.5C

  • Burst Discharge: 1C

  • Weight: 2g

  • Voltage: 3.7V

  • Cycle Life (DOD80%): ≥500

Application Scenarios:
Smart pens, micro wearables, medical patches

NanoWriter, PulseTag, MicroBand

Certificates

UN38.3, MSDS, IEC62133, CB, KC, BIS, KSE, UL, Reach, RoHS etc.
