Customized lipo battery
    MOTOMA battery
  • motoma battery

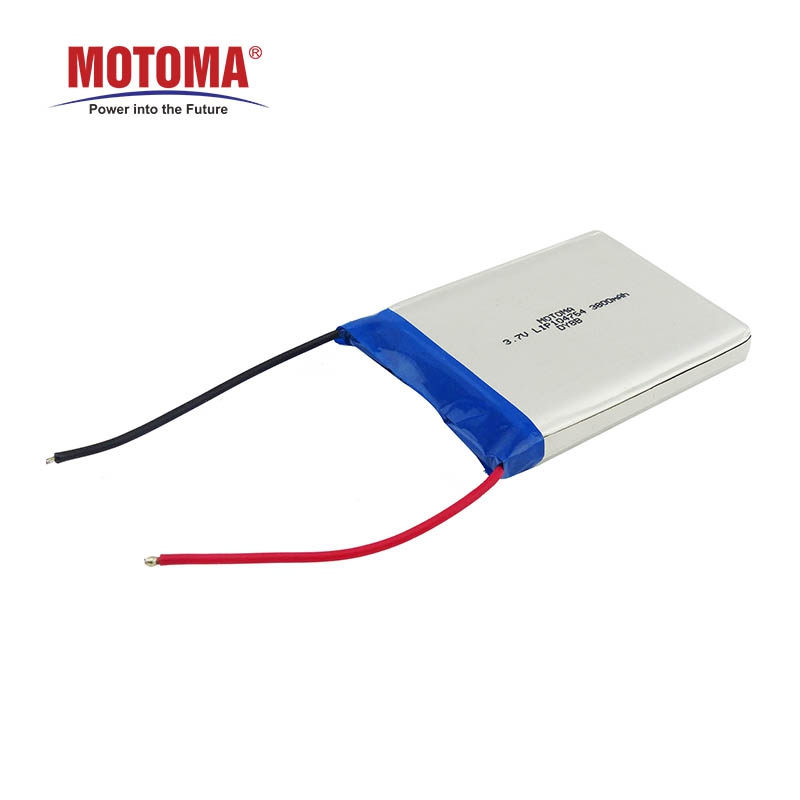

Custom lithium battery for wireless portable pet motion detection camera

  • 104764 3800mAh  3.7V (Customizable)
  • Ultra-thin design.
  • High energy density.
  • Long lifespan.
  • Excellent safety.
  • Battery Chemistry: Lithium Ion Polymer
  • Original lipo battery factory from raw material to battery cell and battery pack.
  • Battery Terminations: PC Pins (Horizontal) / (Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors.
  • Battery Customizing: Custom design shape and size is available, lipo battery poly cell pack factory.
Inquiry
Description
Downloads
Video
Applications

Custom lithium battery for wireless portable pet motion detection camera


Product Specification
Battery model 3.7V 104764 3800mAh (Customizable)
Nominal voltage 3.7V
Nominal capacity 3800mAh
Minimum capacity 3800mAh
Charging voltage 4.2V
Standard charging current 720mA (0.2C)
End current 38mA (0.01C)
Max. charging current 1900mA (0.5C)
Standard discharging current 720mA (0.2C)
Max. discharging current 3800mA (1C)
End voltage of discharge 3.0V
Dimension of cell 1.0*47*64mm (Customizable)
Charging temperature range 0~45℃
Discharging temperature range -20~60℃
Connector Molex, JST, Hirose etc (Customizable)
Protection Circuit Module (PCM) Overcharge protect, over-discharge protect, over current protect, short-circuit protect
Cycle life ≥80% capacity after 500 times standard cycles
Warantty life 12 months
Certificates

UN38.3, MSDS, IEC62133-2:2017, CB, CQC, KC, BIS, KSE, UL, Reach, RoHS etc.


Battery Support Customization (Size Voltage Capacity BMS Chip Cable Plug)

Lipo battery Customization


Battery Protection Board Support Customization

Lipo battery Customization


Terminal Cable and Plug Support Customization

Lipo battery Customization


Certifications, We can also do the certificate according to your requirements.

Lipo battery Certificate
