Product Specification

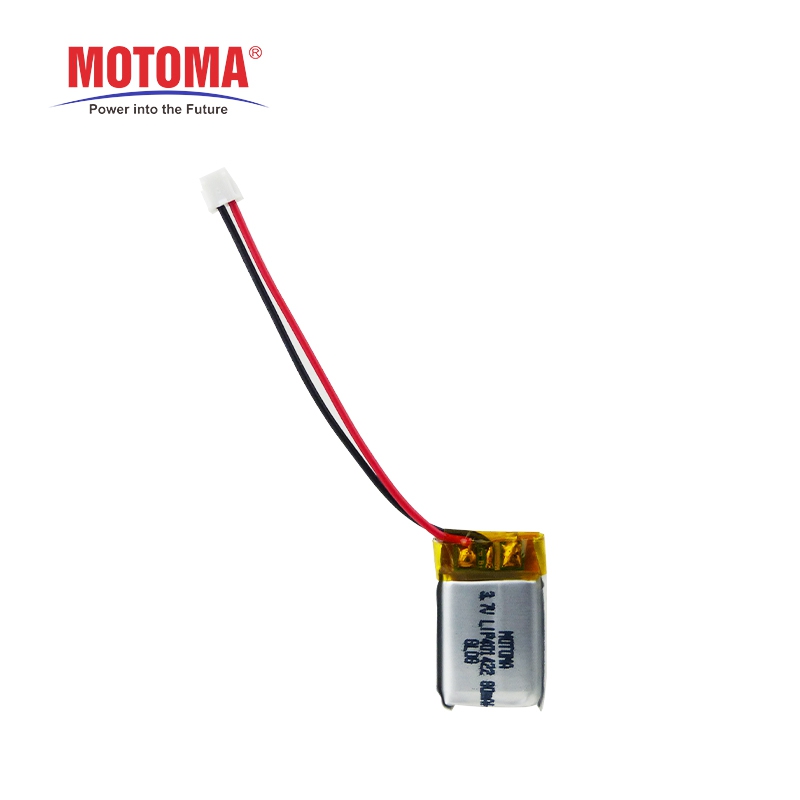

| Battery model | 3.7V 401422 80mAh |
| Nominal voltage | 3.7V |
| Nominal capacity | 80mAh |
| Minimum capacity | 80mAh |
| Charging voltage | 4.2V |
| Standard charging current | 16mA (0.2C) |
| End current | 0.80mA (0.01C) |
| Max. charging current | 40mA (0.5C) |
| Standard discharging current | 16mA (0.2C) |
| Max. discharging current | 80mA (1C) |
| End voltage of discharge | 3.0V |
| Dimension of cell | 4.0*14*22mm |
| Charging temperature range | 0~45℃ |
| Discharging temperature range | -20~60℃ |
| Connector | Customizable: PC Pins (Horizontal) / (Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors |
| Protection Circuit Module (PCM) | Overcharge protect,over-discharge protect, over current protect, short-circuit protect |
Certificates
UN38.3, MSDS, IEC62133, CB, KC, BIS, KSE, UL, Reach, RoHS etc.
MOTOMA Advantages:
Technology - With more than 30 years of battery manufacturing and automatic production line, MOTOMA can guarantee our products better products.
R&D - Experienced R&D team with over 20 engineers for supporting OEM and ODM requirements
Safety - Various tests are done at MOTOMA to ensure the safety of our products for our customers.
Certificates - CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Service - MOTOMA has a professional sales team to provide professional project solutions and after-sale services. High-quality and competitive price.
