Customized lipo battery
    MOTOMA battery
  • motoma battery

Custom lithium battery for heat wrist wrap glove vest clothes girdle

  • 3670140  3900mAh  3.7V (Customizable)
  • Ultra-thin design.
  • High energy density.
  • Long lifespan.
  • Excellent safety.
  • Battery Chemistry: Lithium Ion Polymer
  • Original lipo battery factory from raw material to battery cell and battery pack.
  • Battery Terminations: PC Pins (Horizontal) / (Vertical), SMT (SMD) Mount, Solder Tabs, Wires, Cables with Connectors.
  • Battery Customizing: Custom design shape and size is available, lipo battery poly cell pack factory.
Inquiry
Description
Downloads
Video
Applications

Custom lithium battery for heat wrist wrap glove vest clothes girdle


Product Specification

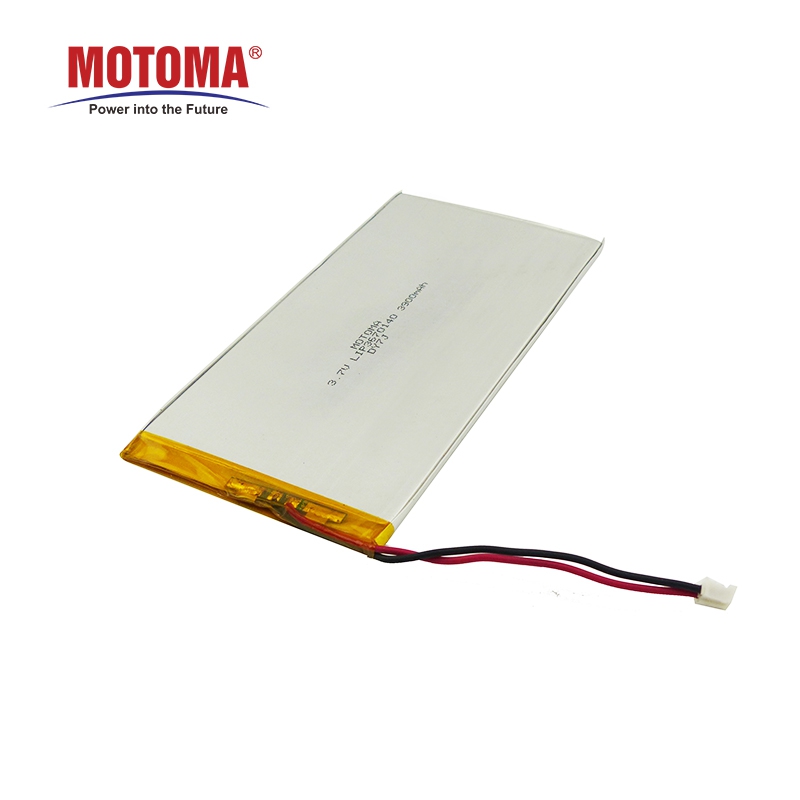

Battery model 3.7V 3670140  3900mAh (Customizable)
Nominal voltage 3.7V
Nominal capacity 3900mAh
Minimum capacity 3900mAh
Charging voltage 4.2V
Standard charging current 780mA (0.2C)
End current 39mA (0.01C)
Max. charging current 1950mA (0.5C)
Standard discharging current 780mA (0.2C)
Max. discharging current 3900mA (1C)
End voltage of discharge 3.0V
Dimension of cell 3.6*70*140mm (Customizable)
Charging temperature range 0~45℃
Discharging temperature range -20~60℃
Connector Molex, JST, Hirose etc (Customizable)
Protection Circuit Module (PCM) Overcharge protect, over-discharge protect, over current protect, short-circuit protect
Cycle life ≥80% capacity after 500 times standard cycles
Warantty life 12 months
Certificates

UN38.3, MSDS, IEC62133-2:2017, CB, CQC, KC, BIS, KSE, UL, Reach, RoHS etc.


Battery Support Customization (Size Voltage Capacity BMS Chip Cable Plug)

Lipo battery Customization


Battery Protection Board Support Customization

Lipo battery Customization


Terminal Cable and Plug Support Customization

Lipo battery Customization


Certifications, We can also do the certificate according to your requirements.

Lipo battery Certificate


Exhibitions & Shows

Exhibition of MOTOMA Lipo battery


Automatic Factory Workshop Line

Factory Lipo battery


Quality Testing

Lipo battery Factory Laboratory


Battery & Packaging

Lipo battery Pack
