Description
Overview:

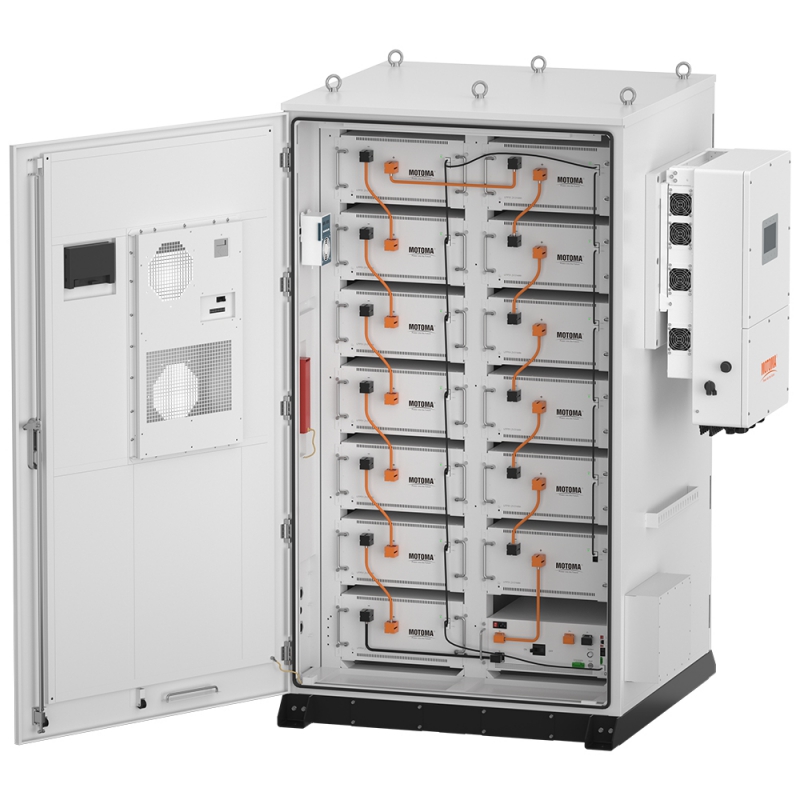

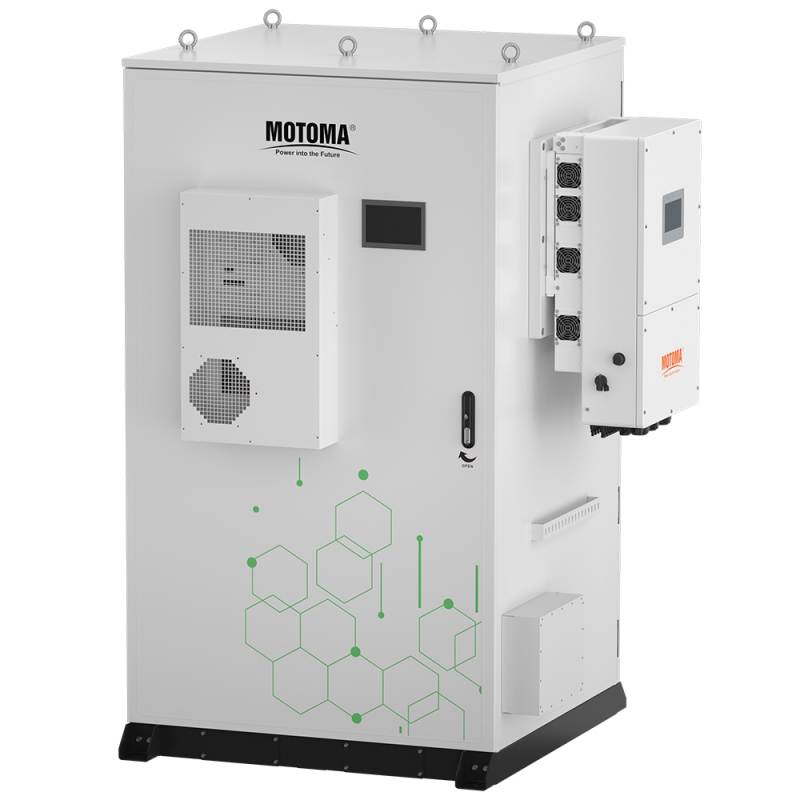

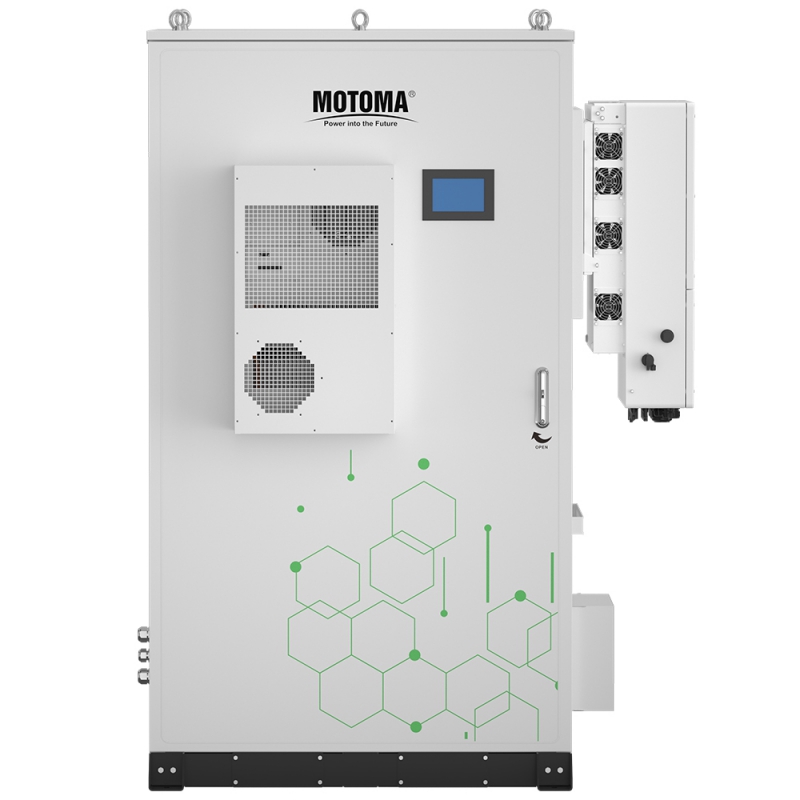

The ESS-MHV PRO is a compact, scalable, and outdoor-ready commercial and industrial (C&I) energy storage system. It consists of a power battery cluster, hybrid inverter, intelligent temperature control system, BMS, EMS, and a weather-resistant cabinet. The system offers flexible capacity options of 161kWh, 193kWh, or 209kWh per unit and supports expansion with up to 8 units in parallel, making it ideal for applications requiring reliable, high-performance energy storage.
Main Features:
Safe:
- Advanced Safety & Protection: IP55-rated for outdoor use, with a three-level BMS providing multi-layer protection against over/under voltage, current, temperature, and short circuits.
- Reliable Thermal Management: Built-in fans for thermal balance ensure stable and safe operation.
- High-Quality Cells: Utilizes LiFePO4 cells, known for their safety and longevity.
Simple:
- Flexible Configuration & Expansion: Offers 161kWh, 193kWh, and 209kWh unit options, with the ability to expand up to 8 units in parallel.
- Compact & Modular Design: Features a small footprint, quick floor-mounted installation, and low maintenance requirements.
- All-in-One Integration: Combines all necessary components into a single, easy-to-install unit.
Smart:
- Smart Control & Communication: Includes an integrated 7.0″ LCD screen for real-time monitoring, with optional local and remote monitoring via Wi-Fi, 4G, or LAN.
- High Efficiency & Performance: Achieves an inverter efficiency of up to 97.8% and a charge/discharge efficiency of up to 97.5%.
- Long Cycle Life: Delivers 8000 cycles at 70% EOL, ensuring a long operational lifespan.
Application:
- Commercial Premises
- Industrial Park
- Mine
- Pastoral
- Petrol Station
- Island
- Data Centre
