113kWh to 193kWh High Voltage LiFePO4 Battery ESS 358V to 614V for EPS UPS Applications

113kWh to 193kWh High Voltage LiFePO4 Battery ESS 358V to 614V for EPS UPS Applications

Product Description

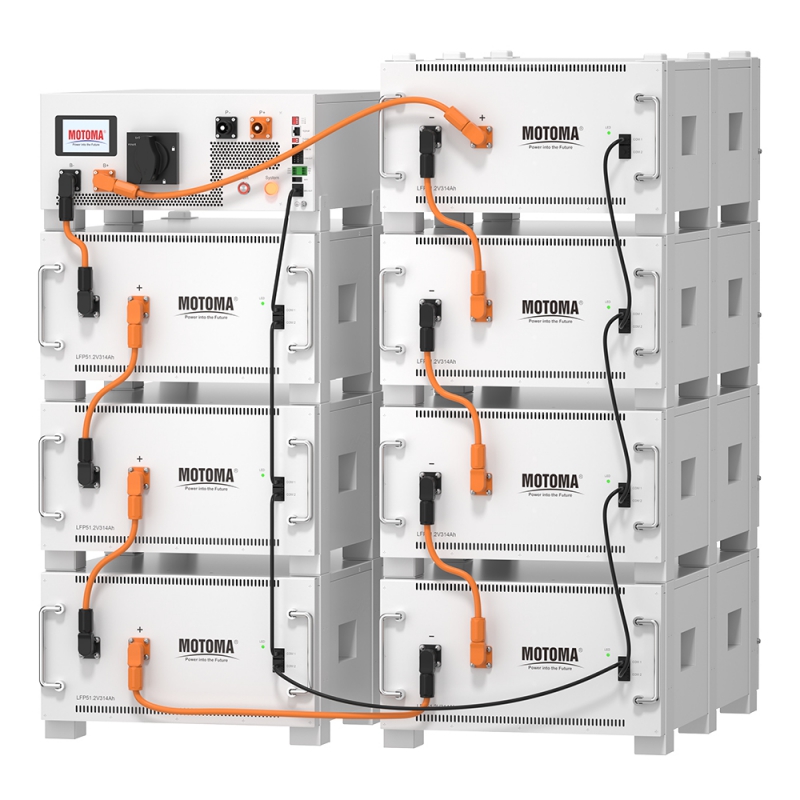

The MOTOMA HV-M 113–193 is a high-voltage lithium iron phosphate (LiFePO4) battery system designed for reliable energy storage in commercial, industrial, UPS, home storage and other power applications. Its modular design supports different system capacities from 112.5kWh to 192.9kWh, with system voltage up to 614.4V. With 8000-cycle life, intelligent monitoring, flexible communication and support for up to 8 battery cabinets in parallel, the system is designed to make large-scale energy storage easier to install, manage and expand.

Applications

• Commercial Energy Storage
• Industrial Energy Storage
• UPS Energy Storage Systems
• Home Energy Storage
• Industrial Parks
• Mines
• Petrol Stations
• Data Centers
• Pastoral and Remote Energy Systems
• Island Energy Storage

Technical Parameters

Battery Module

• Battery Chemistry: LiFePO4
• Module Capacity: 314Ah
• Module Nominal Voltage: 51.2V
• Module Energy: 16.07kWh
• Module Voltage Range: 43.2–57.6V
• Module Dimensions (W × D × H): 760 × 440 × 230mm
• Module Weight: Approximately 115kg
• Maximum Charging Current: 150A
• Maximum Discharging Current: 150A
• Cycle Life: 8000 cycles

HV-M113 Configuration

• Battery Module Quantity: 7 modules in series
• System Nominal Voltage: 358.4V
• System Energy: 112.5kWh
• System Voltage Range: 302.4–403.2V
• System Dimensions (W × D × H): 1086 × 815 × 1068mm
• System Weight: Approximately 850kg

HV-M129 Configuration

• Battery Module Quantity: 8 modules in series
• System Nominal Voltage: 409.5V
• System Energy: 128.6kWh
• System Voltage Range: 345.6–460.8V
• System Dimensions (W × D × H): 1086 × 815 × 1280mm
• System Weight: Approximately 970kg

HV-M161 Configuration

• Battery Module Quantity: 10 modules in series
• System Nominal Voltage: 512V
• System Energy: 160.8kWh
• System Voltage Range: 432–576V
• System Dimensions (W × D × H): 1630 × 815 × 1068mm
• System Weight: Approximately 1210kg

HV-M193 Configuration

• Battery Module Quantity: 12 modules in series
• System Nominal Voltage: 614.4V
• System Energy: 192.9kWh
• System Voltage Range: 518.4–700.8V
• System Dimensions (W × D × H): 1630 × 815 × 1280mm
• System Weight: Approximately 1450kg

Operating Conditions

• Charging Temperature: 0°C–45°C
• Discharging Temperature: -20°C–60°C
• Storage Temperature: 0°C–35°C
• Humidity: 5%–85% RH
• Maximum Altitude: ≤3000m
• Enclosure IP Rating: IP20
• Recommended Depth of Discharge: 90%
• Installation: Rack-Mounted
• Communication: CAN / RS485

System Scalability and Management

The HV-M113 series is designed with scalability in mind. Its standardized module structure allows different battery module quantities to be combined into different high-voltage configurations, while up to 8 battery cabinets can be managed in parallel. This gives system integrators more flexibility when planning energy storage capacity for different sites and power requirements.

With high-voltage LiFePO4 technology, long cycle life, intelligent monitoring and flexible communication, the MOTOMA HV-M 113–193 provides a practical battery platform for commercial and industrial energy storage projects that require stable operation and straightforward system management.
