Understanding Market Demand and User Pain Points
A Growing Health Concern
Diabetes is one of the fastest-growing chronic diseases worldwide, and China is no exception. According to the latest data from the International Diabetes Federation, more than 140 million people in China are living with diabetes, making it the country with the highest number of diabetics globally. This has led to a surge in the demand for home-use blood glucose monitoring devices, especially compact, portable meters.
The Demand for Senior-Friendly Devices
Adults over the age of 50 represent the majority of diagnosed diabetes cases. This demographic often struggles with vision decline and reduced dexterity, so modern glucose meters must be:
- Easy to operate
- Equipped with large font displays
- Designed with backlighting
- Built for long battery life to avoid frequent charging
Common Pain Points
- Battery Life vs. Device Size: As devices become smaller and more convenient, they leave less space for batteries. Smaller batteries mean more frequent charging or replacements, which frustrates users.
- High Cost Pressure: Foreign brands dominate the market, often with higher price tags. Domestic manufacturers are trying to reduce costs through local supply chains but face stiff competition.
- Technical Challenges: Achieving a balance between low power consumption and stable, high-precision power output remains a key engineering hurdle.
Comparing Battery Types for Glucose Meters
Selecting the right battery type is crucial for balancing size, cost, and performance. Here‘s a comparison of common lithium battery types used in glucose meters:
| Battery Type | Typical Capacity | Voltage | Key Features | Application Examples |
|---|---|---|---|---|
| Button Cell (CR2032) | 200–240 mAh | 3V | Small size, limited capacity | Early-generation compact meters |
| Cylindrical Li-ion Cell | 500–800 mAh | 3.7V | Moderate capacity, cost-effective | Mid-range models like Yuwell 660 |
| Lithium Polymer (LiPo) | 600–1200 mAh | 3.7V | Ultra-thin, high energy density, customizable shapes | High-end non-invasive glucose monitors |

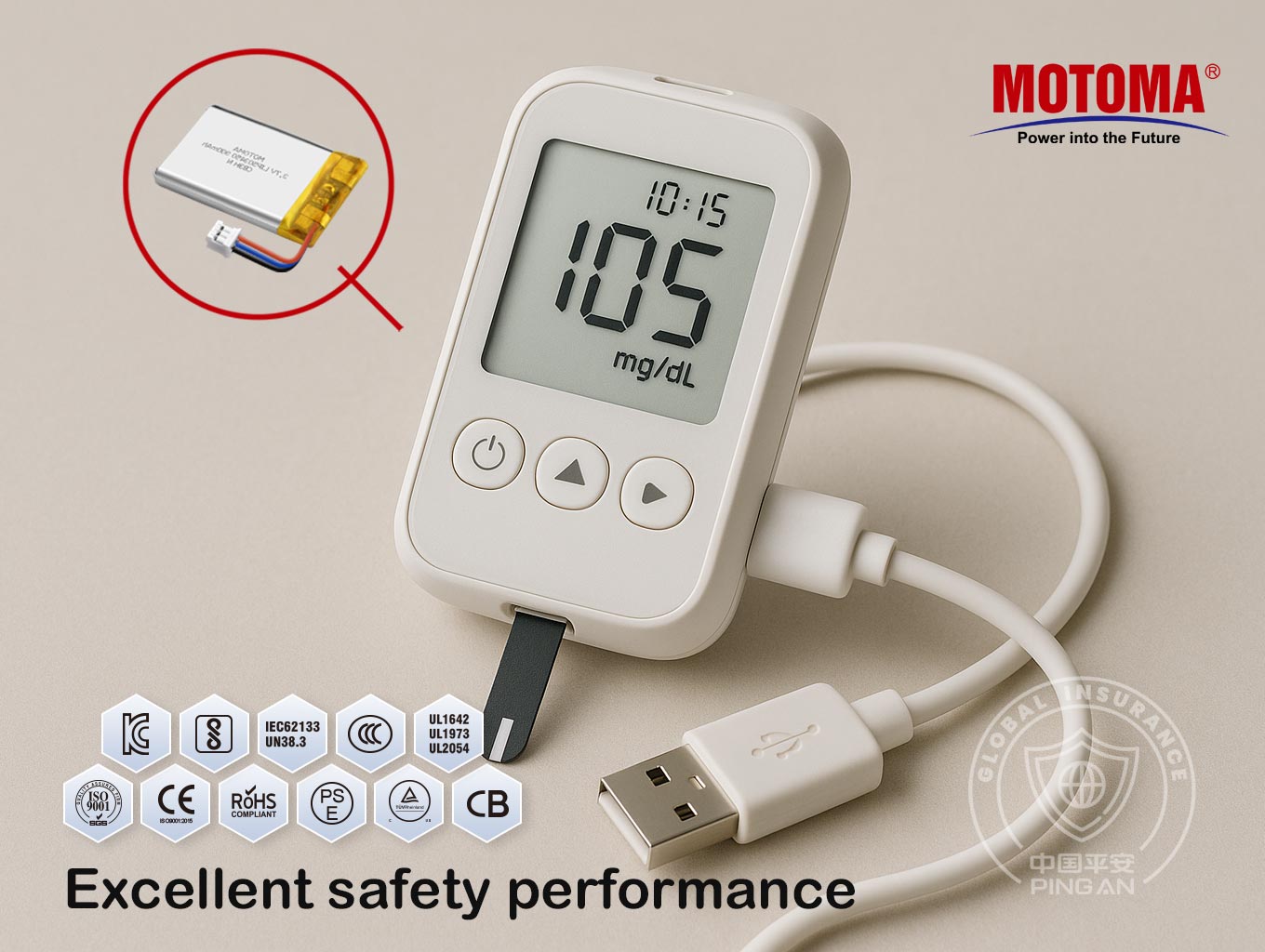

Powering Glucose Meters with Lithium Polymer Batteries
Key Design Considerations
- Custom Battery Cells: Thin LiPo batteries with capacities around 600mAh and thickness under 4mm fit perfectly into compact meter designs.
- Smart Power Management:
- Dynamic adjustment of MCU (microcontroller) frequency to reduce standby current to below 10μA
- Integration of low-power Bluetooth modules for wireless data syncing
- Fast Charging Support: Devices can be fully charged in 1.5 hours via Type-C port, supporting over 500 charge cycles
Performance Advantages
| Feature | LiPo Battery | Button Cell (CR2032) |
|---|---|---|
| Daily Usage Support | 4 measurements/day for 30 days | 4–6 days max |
| Charging Frequency | Once a month | Weekly replacements |
| Cost Efficiency | 15% lower BOM with domestic cells | Higher due to imports |
| Lifespan | ≥500 cycles | Single-use |
| Compatibility with Smart Features | High | Limited |
Safety, Compliance, and Reliability
Lithium polymer solutions for medical devices must meet strict safety and performance standards. The latest battery designs for glucose meters are:
- Certified under ISO 13485 for medical power systems
- Stable across temperature ranges from -20°C to 60°C
- Equipped with protection circuits to prevent overcharging, overheating, and short circuits
Lithium Battery Specifications in Common Medical Devices
In the medical field, lithium batteries are widely used across a variety of portable and implantable devices due to their high energy density, long cycle life, and compact form factors. Below are typical battery specifications matched with commonly used medical equipment:
| Medical Device | Battery Type | Capacity Range | Voltage | Special Requirements |
|---|---|---|---|---|
| Blood Glucose Meter | Lithium Polymer (LiPo) | 600–1200 mAh | 3.7V | Ultra-thin, fast charging, long standby |
| Digital Thermometer | Button Cell (CR2032/CR2025) | 150–240 mAh | 3V | Small size, replaceable, low cost |
| Portable ECG Monitor | Cylindrical Li-ion | 1000–2000 mAh | 3.7V | Stable output, safety circuit protection |
| Pulse Oximeter | Rechargeable Li-ion | 300–600 mAh | 3.7V | Lightweight, frequent charging cycles |
| Insulin Pump | Custom LiPo or Li-ion | 800–1500 mAh | 3.7V | Long duration, strict medical compliance (ISO 13485) |
| Hearing Aid | Zinc-Air or Li-ion Button | 20–150 mAh | 1.4V or 3.7V | Ultra-small form factor, stable voltage output |
| Portable Nebulizer | Lithium Polymer | 1200–2000 mAh | 3.7V | High load current, quick recharge, long use per charge |
| Patient Monitoring Terminal | High-capacity Li-ion Pack | 3000–6000 mAh | 7.4V | Continuous operation, hospital-grade safety requirements |
Each application has its own power profile. For instance, hearing aids demand miniature batteries with constant voltage, while portable ECGs and insulin pumps require robust battery packs with medical-grade certifications to ensure reliability and patient safety. Increasingly, LiPo batteries are favored in next-generation devices for their flexibility in size and shape, making them ideal for sleek, ergonomic medical tools.
