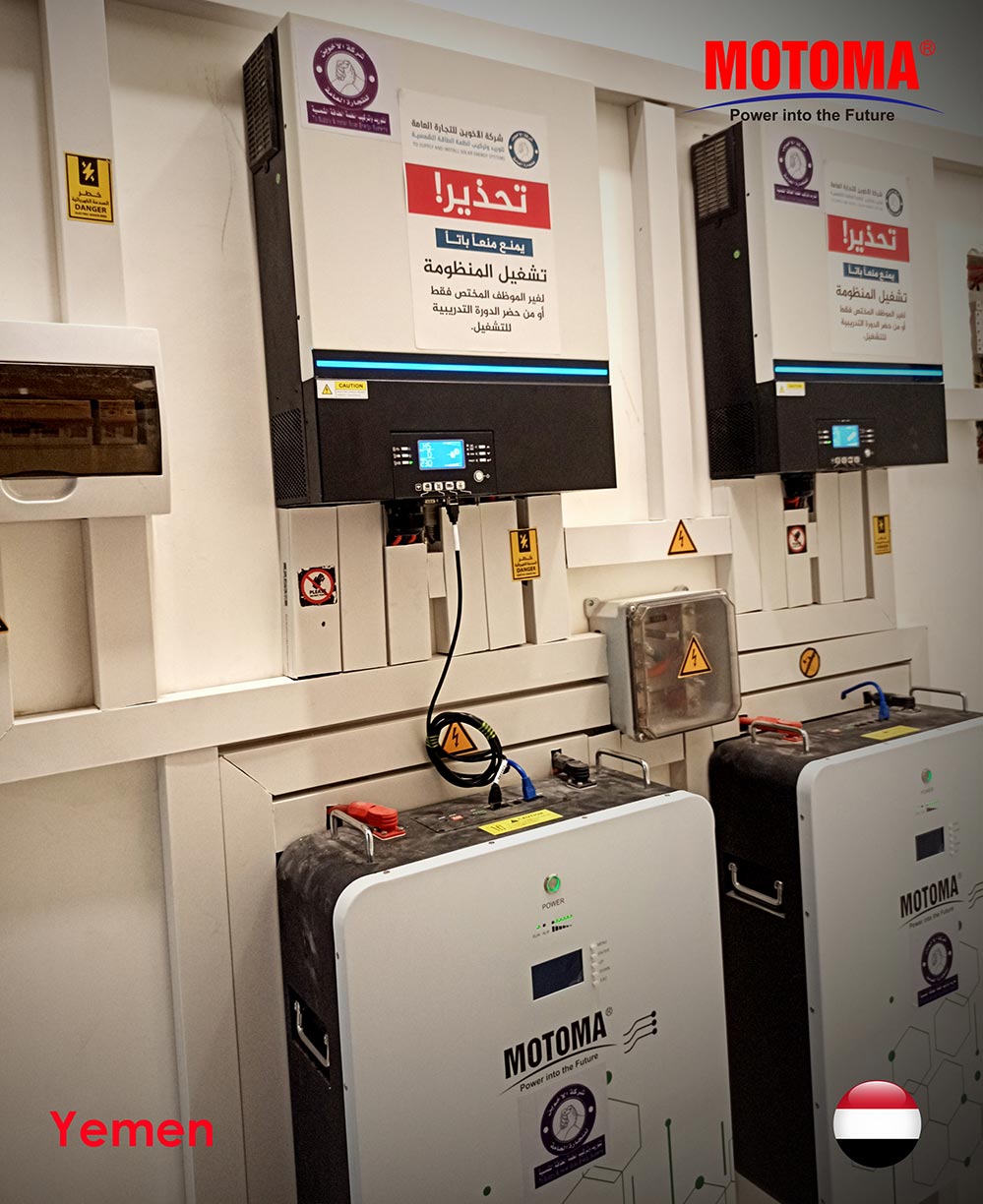

As the demand for reliable, clean, and cost-effective energy continues to grow, solar energy systems integrated with advanced battery storage are becoming a practical solution for both home and business users. In this case, we present a real-world application of a high-efficiency solar energy storage system composed of:
- 2 units of 10.24kWh lithium battery (M88PW)
- 2 units of 11kW Axpert MAX TWIN inverters
- A solar array using high-efficiency 555W PERC solar panels
This system is engineered to provide uninterrupted power during grid outages, serve peak load shifting to reduce electricity costs, and supply sustainable energy in remote or electricity-scarce regions.
System Overview
| Component | Specification |
|---|---|
| Battery | 51.2V, 200Ah, 10.24kWh LiFePO₄ (M88PW), ≥6000 cycles @ 80% DOD |
| Inverter | 11kW per unit (x2), 150A MPPT charger, dual output, wide PV range (90–450VDC) |
| Solar Panels | 555W Mono PERC modules with superior low-light performance and higher efficiency |
| Total Battery Capacity | 20.48kWh |
| Total Inverter Output | 22kW |
Solar Array Sizing and Load Calculations
Step 1: Solar Panel Quantity Calculation
To fully charge the 20.48kWh battery system daily with solar, assuming 5 peak sun hours per day:
- Required PV generation per day = 20.48kWh ÷ 0.85 ≈ 24.1kWh/day
- Each panel output/day = 555W × 5h = 2.78kWh
- Number of panels = 24.1 ÷ 2.78 ≈ 9
- Final Recommendation: Use 10×555W PERC panels
Step 2: Load Power Estimation
| Device | Power (W) | Quantity | Total (W) |
|---|---|---|---|
| Air Conditioner | 1500 | 2 | 3000 |
| Refrigerator | 300 | 1 | 300 |
| LED Lights | 10 | 20 | 200 |
| Computer + Monitor | 150 | 4 | 600 |
| Router + CCTV | 50 | 1 | 50 |
| Water Pump | 1000 | 1 | 1000 |
| Washing Machine | 800 | 1 | 800 |
Total Load ≈ 6kW, which can be supported comfortably by one inverter.
Installation Guide (Simplified for Non-Experts)
- Site Assessment: Choose a sun-exposed roof or ground-mount area. Ensure structural strength and shading analysis.
- Mounting Solar Panels: Use aluminum racking systems with 30°–40° tilt. Ensure grounding.
- Inverter Installation: Install indoors or shaded area. Connect panels and batteries with surge protection.
- Battery Installation: Store in ventilated cabinet. Connect in parallel. Use correct cables and BMS communication.
- Load Connection: Connect load circuits and optional grid/generator inputs via ATS.
Operation & Safety Tips
- Charge between 0–45°C; discharge –20–60°C
- Use proper surge protectors
- Monitor performance via app
- Clean panels and check cables regularly
- Provide emergency shutdown instruction
Why This System Is a Smart Investment
- 24/7 Uninterruptible Power
- Peak Shaving for Cost Reduction
- Eco-Friendly & Scalable
- Smart Control
Ideal Applications
- Homes & Villas
- Shops, Clinics, Restaurants
- Small Manufacturing Workshops
- Rural Electrification Projects
- Emergency Power Systems
This solar energy storage setup demonstrates how high-performance lithium batteries, efficient inverters, and advanced PERC solar panels work together to deliver clean, reliable, and smart power. It’s a flexible solution that adapts to diverse power needs—whether for home resilience, commercial reliability, or industrial continuity.
