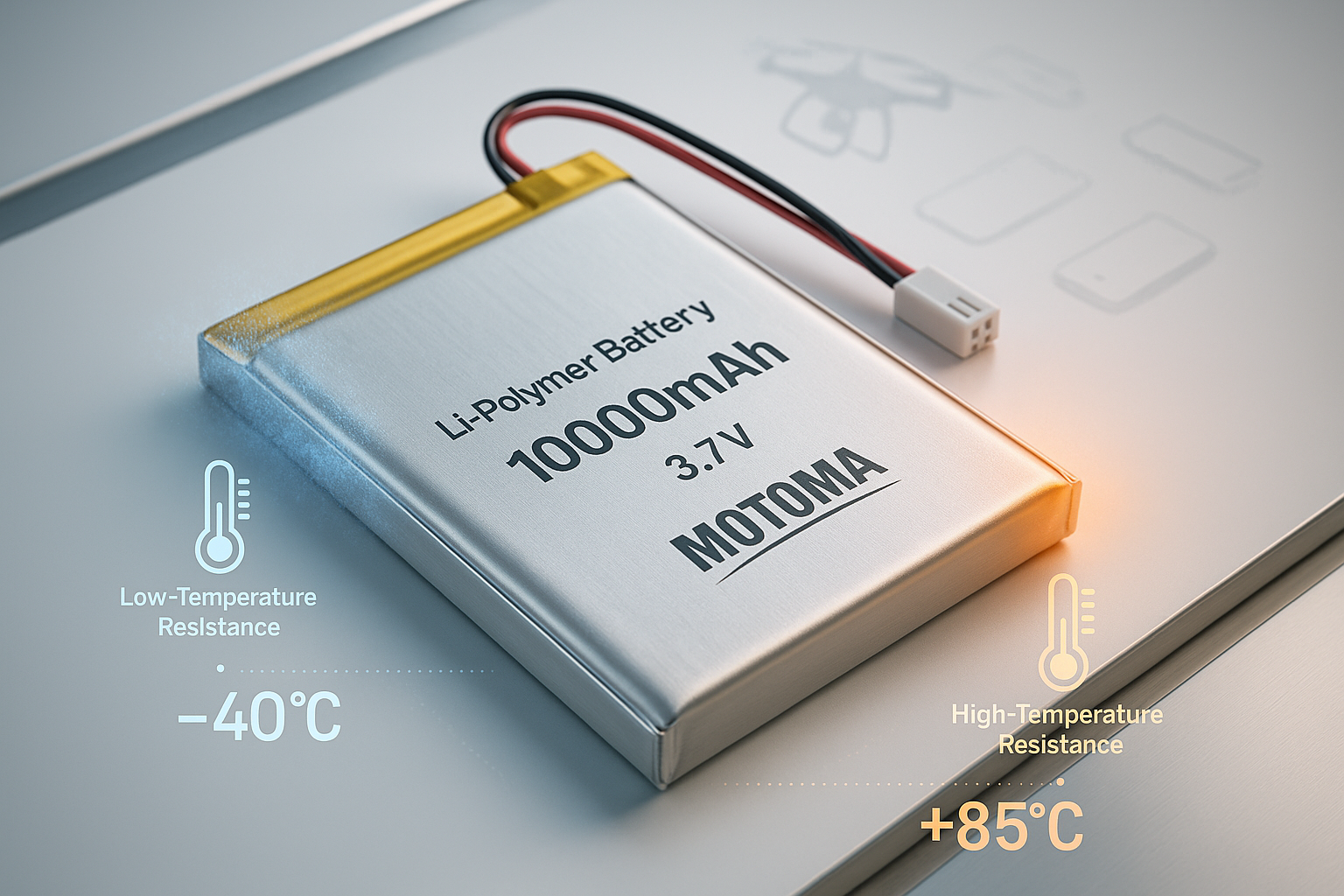

Lithium Polymer Battery 10000mAh High-Temperature and Low-Temperature Resistant Solutions

The term “lithium polymer battery 10000mAh” refers to a mid-to-high-capacity Li-Po cell commonly used in power banks, portable electronics, drones, and wearable devices. This guide explains what 10,000mAh means in energy terms, how these batteries behave under high and low temperatures, practical selection and safety tips, and frequently asked technical questions.

Capacity and energy explained

Nominal capacity: 10,000 mAh = 10 Ah. Typical nominal voltage: 3.7 V (single Li-Po cell). Energy (approx.): 3.7 V × 10 Ah = ≈ 37 Wh.

This 37 Wh figure helps compare energy across products and is useful for transport rules (many airlines limit individual lithium batteries to 100 Wh for carry-on items).

Temperature performance: why it matters

Temperature significantly affects usable capacity, output capability, cycle life, and safety. High and low temperatures present different challenges:

High-temperature behavior

• At elevated temperatures (e.g., above 45°C), internal chemical reactions accelerate, which can temporarily allow higher output but also speeds up irreversible aging.
• Long exposure to high heat increases risk of swelling and, in damaged cells, thermal runaway. Quality batteries mitigate this with thermal protection, flame-retardant separators, and protective circuitry.
• Typical safe operating upper limit for many consumer Li-Po cells is around +60°C; industrial variants may specify higher limits.

Low-temperature behavior

• Below 0°C, internal resistance rises and effective capacity drops; at −20°C usable capacity may fall to roughly 50–70% depending on cell chemistry.
• Cold temperatures also reduce the battery’s ability to supply high currents; some specialized Li-Po chemistries and electrolytes improve low-temperature performance at higher cost.
• For reliable operation in cold climates, select cells rated for lower temperatures and plan thermal management (insulation, placing battery near heat sources, or battery warming strategies).

Typical specifications (representative)

Common applications

• Power banks: Compact, high-capacity energy storage for phones and tablets.
• Drones & RC: High discharge capability and favorable power-to-weight ratio.
• Medical & wearables: Stable output, small form factors, and safety certifications required.
• IoT & industrial sensors: Long runtime with occasional high-current bursts; temperature specs are critical.

Selection and safety practical tips

• Always check manufacturer specifications for operating and storage temperature ranges and for C-rating (maximum continuous discharge capability).
• Prefer cells and packs with BMS (Battery Management System) protection to prevent overcharge, overdischarge, and short circuits.
• Use chargers that limit charging current and monitor temperature; avoid charging in extreme heat or cold unless the product is rated for it.
• Store long-term at around 40–60% state of charge in a cool, dry place to minimize aging and swelling.

Frequently Asked Questions (Technical & Practical)

1. What real-world runtime can I expect from a 10000mAh Li-Po battery?

Runtime depends on the load. Theoretical energy is ≈37Wh; dividing 37W by device power gives hours. Real-world runtime is lower due to conversion losses (boost converters in power banks), temperature effects, and battery age. For example, a 5W device could run ~7 hours theoretically, but expect 5–6 hours in practice.

2. How does cold weather reduce battery performance?

Cold increases internal resistance, reducing voltage under load and effective capacity. At temperatures below 0°C, you may see significant capacity loss and reduced peak current capability. Cells engineered with low-temperature electrolytes perform better but still exhibit some loss.

3. Is 10,000mAh safe for air travel?

Yes, most airlines allow lithium batteries under 100 Wh in carry-on luggage. A 10,000mAh, 3.7V cell is ≈37Wh, well below 100Wh. However, protect terminals against short circuits and follow airline and local regulations.

4. What does the C-rating mean, and how does it affect device selection?

C-rating indicates the maximum safe continuous discharge current relative to capacity. For example, 1C for a 10,000mAh cell equals 10 A continuous. High-power devices (motors, drones) require higher C-rated cells; low-power devices (phones, sensors) work fine with lower C-rated cells.

5. How many cycles will a 10000mAh Li-Po typically last?

Cycle life commonly ranges from ~300 to over 1,000 cycles, depending on depth of discharge, charge rates, and operating temperature. Shallow discharge cycles and moderate temperatures prolong lifespan.

6. What causes battery swelling and how can it be prevented?

Swelling results from internal gas generation due to overcharge, deep discharge, high-temperature exposure, or cell damage. Prevent swelling by using proper charging protocols, avoiding extreme temperatures, and replacing damaged cells promptly.

7. Can a 10000mAh Li-Po charge a smartphone multiple times?

Yes. Considering conversion losses and voltage boosts in power banks, a 10,000mAh (3.7V) cell with ≈37Wh of energy can typically recharge a modern smartphone (10–15Wh battery) about 2–3 full times, depending on efficiency and phone battery size.

Summary

A lithium polymer battery 10000mAh offers a practical mix of capacity, form factor, and performance for many portable power needs. Temperature tolerance is a key factor—heat shortens life and raises safety concerns, while cold reduces available capacity and output. For reliable operation, choose certified cells, pay attention to operating temperature ranges and C-ratings, and implement appropriate thermal and charge management.
