One of the most common questions we hear from homeowners, solar distributors, EPC contractors, and project developers is simple:
"Should I choose a Hybrid Solar System or a Traditional On-Grid Solar System?"
At first glance, both systems use solar panels to generate electricity and reduce utility bills. However, their operating principles, investment costs, backup capabilities, and long-term value can be significantly different.
The right choice depends less on marketing claims and more on practical factors such as local grid reliability, electricity tariffs, energy consumption patterns, and future energy independence goals.
From an engineering perspective, there is no universal answer. The best solution is the one that matches the project‘s actual operating conditions.
Understanding the Two Systems
What Is an On-Grid Solar System?
An on-grid solar system, also known as a grid-tied solar system or grid-connected PV system, generates electricity and sends surplus energy directly to the utility grid.
Typical components include:
- Solar panels (400W, 430W, 550W, 600W, 700W modules)
- String inverter or microinverter
- AC protection equipment
- Monitoring platform
- Utility grid connection
There is usually no battery storage involved.
When solar production exceeds household demand, excess power is exported to the grid. During nighttime or cloudy weather, electricity is imported from the utility company.
What Is a Hybrid Solar System?
A hybrid solar system combines solar generation with battery energy storage.
Typical components include:
- Solar PV modules
- Hybrid inverter (5kW, 8kW, 10kW, 12kW, 15kW)
- LiFePO4 battery storage system
- Smart energy management system
- Grid connection
- Backup power functionality
Instead of sending all excess electricity to the grid, surplus energy can be stored inside batteries such as 5kWh, 10kWh, 15kWh, 20kWh, 30kWh, or even 50kWh systems for later use.

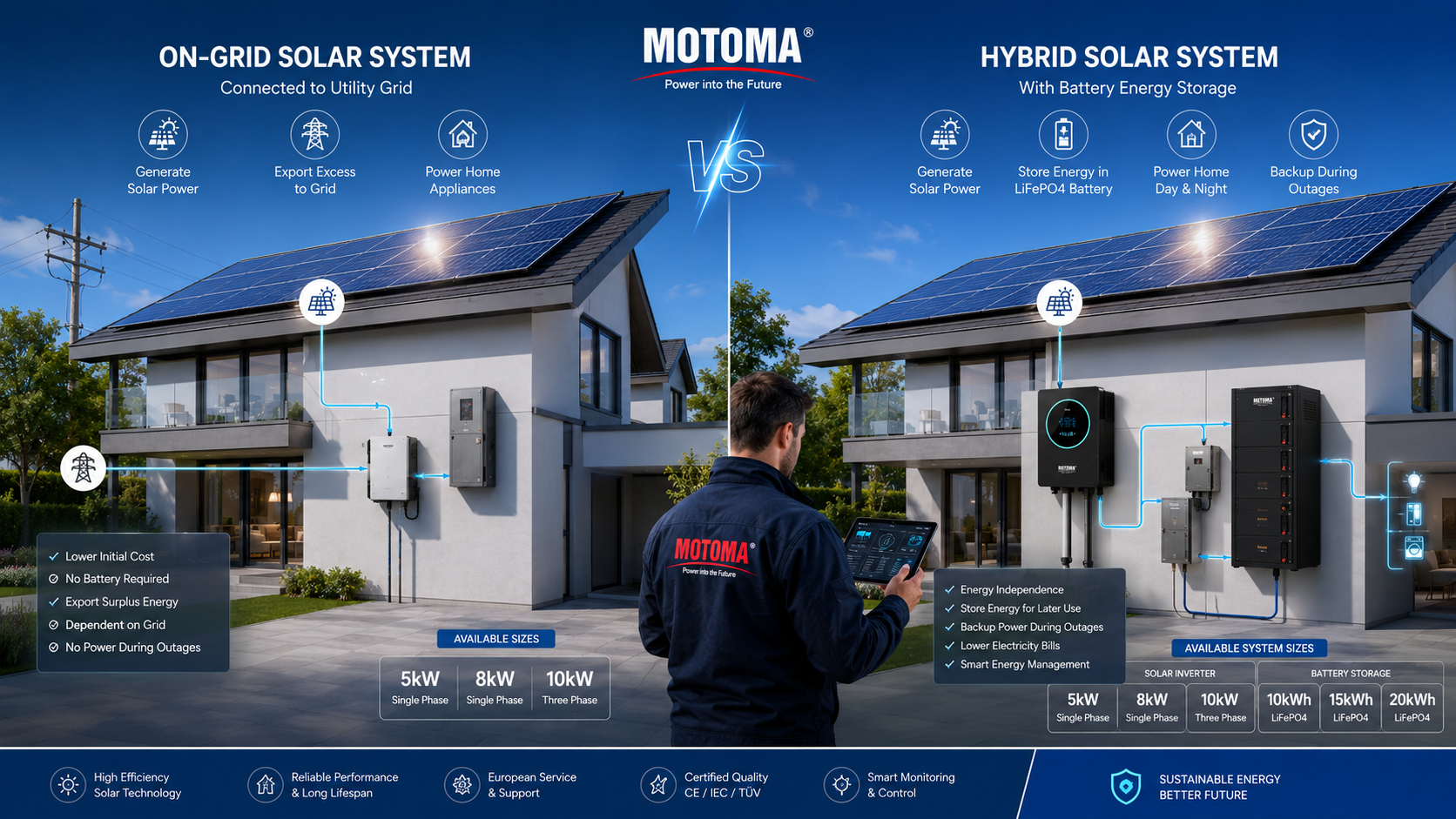

Hybrid vs On-Grid: Quick Comparison
| Feature | On-Grid Solar | Hybrid Solar |
|---|---|---|
| Initial Investment | Lower | Higher |
| Battery Storage | No | Yes |
| Backup During Blackouts | No | Yes |
| Energy Independence | Limited | Higher |
| Peak Shaving Capability | Limited | Excellent |
| Nighttime Solar Usage | No | Yes |
| Installation Complexity | Simpler | More Advanced |
| ROI Period | Shorter | Depends on Electricity Tariffs |
| Future Expansion | Moderate | Flexible |
Why Many Homeowners Still Choose On-Grid Systems
For regions with stable utility infrastructure and favorable net-metering policies, on-grid systems continue to offer attractive economics.
Main Advantages
- Lower upfront investment
- Simpler installation
- Fewer components
- Less maintenance
- Faster payback period
For example, a typical residential project may consist of:
| System Size | Solar Capacity | Panels (430W) | Inverter |
|---|---|---|---|
| 3kW | 3000W | 7 Panels | 3kW |
| 5kW | 5000W | 12 Panels | 5kW |
| 8kW | 8000W | 19 Panels | 8kW |
| 10kW | 10000W | 24 Panels | 10kW |
In countries with reliable electricity service, many homeowners simply want to reduce monthly utility bills rather than invest in backup energy storage.
The Growing Demand for Hybrid Solar Systems
The situation changes when power outages become frequent or electricity prices vary significantly throughout the day.
In these environments, hybrid solar systems often provide additional value beyond energy savings alone.
Common Pain Points Solved by Hybrid Systems
- Frequent blackouts
- Voltage instability
- High peak electricity rates
- Remote locations
- Critical equipment requiring uninterrupted power
Many modern hybrid inverters now feature 0ms UPS-level switching capability, allowing sensitive electronics, networking equipment, security systems, servers, medical devices, and computers to continue operating without interruption during utility failures.
Battery Storage: The Key Difference
The battery is what fundamentally separates hybrid systems from traditional grid-tied installations.
| Battery Capacity | Typical Application |
|---|---|
| 5kWh | Lighting, Internet, Security |
| 10kWh | Essential Home Loads |
| 15kWh | Average Family House |
| 20kWh | Large Residential Home |
| 30kWh+ | Luxury Homes & Villas |
| 50kWh+ | Commercial Backup Applications |
Most residential battery systems today utilize 48V or 51.2V LiFePO4 battery architecture with capacities ranging from 100Ah, 200Ah, 280Ah, 314Ah, and 320Ah configurations.
High-quality lithium iron phosphate batteries can achieve more than 6000 to 8000 cycles while maintaining excellent thermal stability and operational safety.
Cost Comparison in 2026
| System Type | Typical Capacity | Estimated Cost Range |
|---|---|---|
| On-Grid Solar | 5kW | $3,000 - $6,000 |
| On-Grid Solar | 10kW | $6,000 - $12,000 |
| Hybrid Solar | 5kW + 10kWh | $8,000 - $15,000 |
| Hybrid Solar | 10kW + 20kWh | $15,000 - $30,000 |
Although hybrid systems require a larger initial investment, many customers consider the backup functionality, energy security, and protection against rising utility rates worthwhile over the long term.
Which System Is Better for Different Applications?
| Application Scenario | Recommended Solution |
|---|---|
| Urban Area With Stable Grid | On-Grid Solar |
| Regions With Frequent Blackouts | Hybrid Solar |
| Solar Self-Consumption Priority | Hybrid Solar |
| Lowest Initial Investment | On-Grid Solar |
| Remote Areas | Hybrid Solar |
| Critical Business Operations | Hybrid Solar |
| Net Metering Available | On-Grid Solar |
| Energy Independence Goal | Hybrid Solar |
What Installers Should Consider Before Recommending a System
Experienced installers typically evaluate the following factors before system selection:
- Annual electricity consumption (kWh)
- Peak load demand (kW)
- Grid outage frequency
- Electricity pricing structure
- Available roof area
- Local regulations
- Net metering policies
- Future EV charging plans
- Backup power requirements
A proper site assessment often prevents both oversizing and undersizing, resulting in better economics and customer satisfaction.
Final Verdict: Hybrid or On-Grid?
The better system depends entirely on the user‘s objectives.
If the goal is reducing electricity bills with the lowest initial investment, an on-grid solar system remains a practical and efficient choice.
If backup power, energy independence, solar self-consumption, and protection against outages are priorities, a hybrid solar system generally offers greater flexibility and resilience.
Across many residential markets in 2026, the trend is clear: homeowners increasingly view battery storage not as a luxury, but as part of a complete energy management strategy. As battery costs continue to decline and hybrid inverter technology advances, hybrid systems are becoming a common option for new solar installations.
Frequently Asked Questions
1. Is a hybrid solar system worth the extra cost?
In areas with frequent power outages or high peak electricity rates, hybrid systems often provide additional operational and economic benefits beyond basic energy savings.
2. Can a hybrid system work during a blackout?
Yes. Hybrid systems equipped with battery storage can continue powering selected circuits or entire homes depending on inverter capacity and battery size.
3. What battery size is recommended for a home?
Most residential projects use 10kWh to 20kWh LiFePO4 battery storage paired with 5kW to 12kW hybrid inverters.
4. Do on-grid solar systems stop working when utility power fails?
Yes. Standard grid-tied systems automatically shut down during outages to protect utility workers and comply with electrical safety regulations.
5. How long do LiFePO4 batteries last?
Most quality LiFePO4 batteries achieve between 6000 and 8000 cycles, often translating into 10 to 15 years of residential use.
6. Which system provides faster ROI?
In regions with stable grids and strong net metering programs, on-grid systems typically achieve a shorter payback period due to lower upfront investment.
7. Can I upgrade an on-grid system into a hybrid system later?
Yes. Many homeowners begin with grid-tied solar and later add battery storage and a compatible hybrid inverter as energy requirements evolve.
