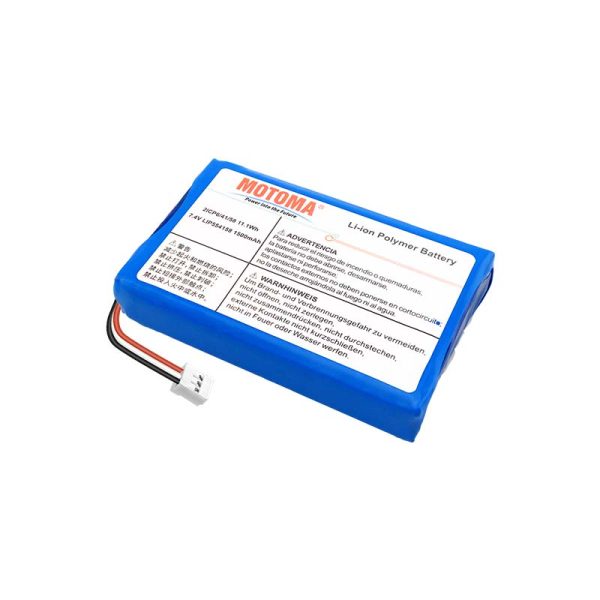

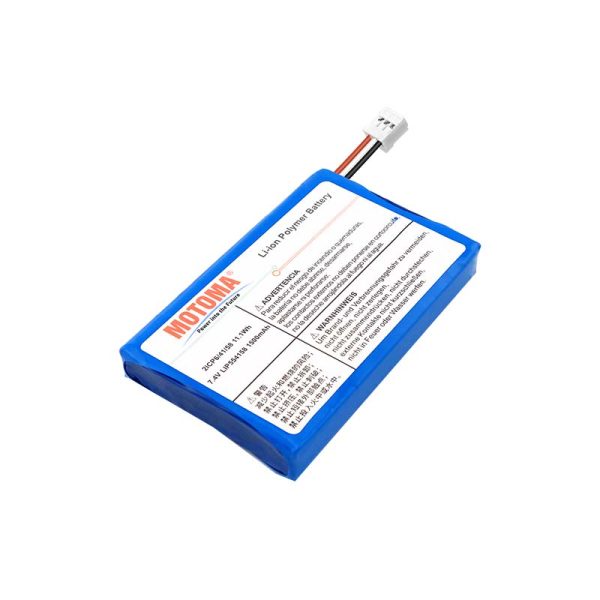

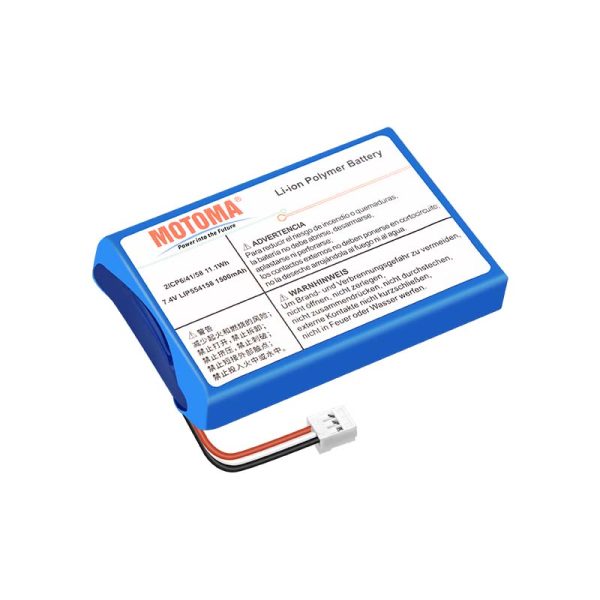

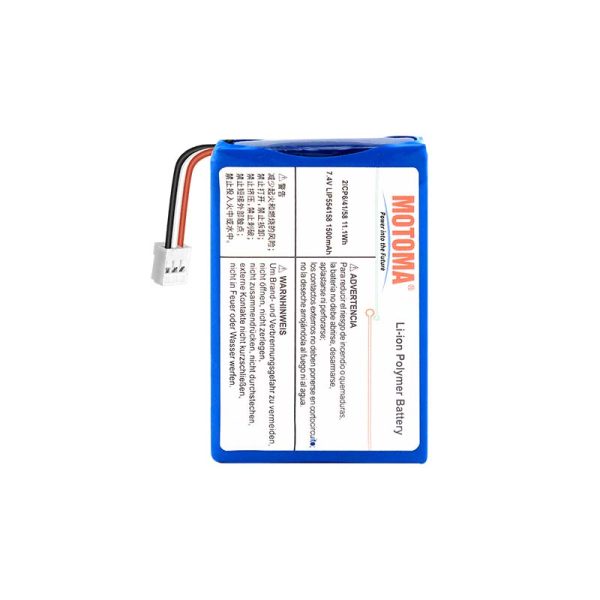

High Temperature Lithium Polymer Battery

  • Normal working temperature -20℃ – 60℃
  • High temerature range -20℃ – 80℃
  • Low temperature range -30℃ – 60℃
  • Base on 0.2C discharge rate the capacity retention is >80%

Product Specification:

Battery model                                     LIP554158
Nominal voltage                                          7.4V
Nominal capacity                                        1500mAh
Minimum capacity                                        1500mAh
Charging voltage                                         8.4V
Standard charging current                                  300mA (0.2C)
End current                                   15mA (0.01C)
Max. charging current                                   750mA (0.5C)
Standard discharging current                                   300mA (0.2C)
Max. discharging current                                    1500mA (1C)
End voltage of discharge                                         6.0V
Dimension of cell                               5.5x 41 x 58mm
Charging temperature range                                       0~45℃
Discharging temperature range                                    -20~60℃

Safety Performance:

  • Overcharge protection
  • Over-discharge protection
  • Discharge over-current protection
  • Short-circuit protection

Quality Management:

  • 100+ critical quality control points
  • 3 stages’ OCV grouping
  • 30+ performance test
  • Shelve at room temperature for 96 hours
  • Aging at 45℃ for 72 hours
  • Unique traceability system

Application Industries:

  • Digital products
  • Heating products
  • Vehicle electronics
  • Smart home products
  • Handheld terminals
  • Mother & Baby care products
  • Medical device

Certificates:

  • UL, CB, IEC62133, PSE, KC, CQC, UN38.3, MSDS, Reach, RoHS
  • All our sold batteries are underwritten by Ping An Property & Casualty Insurance company.
