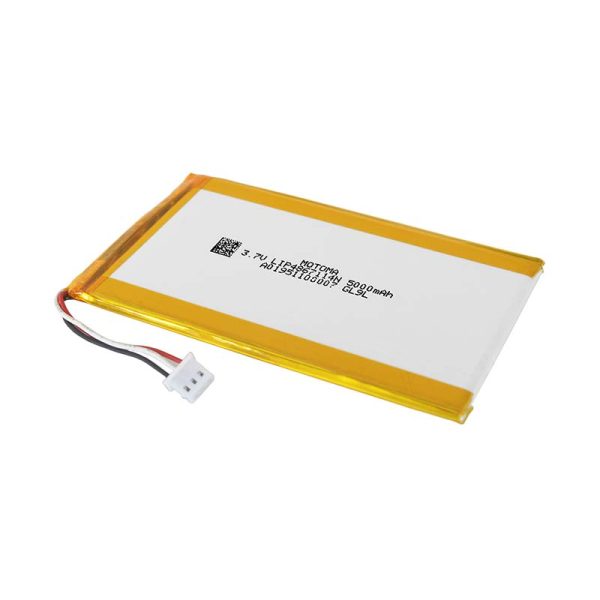

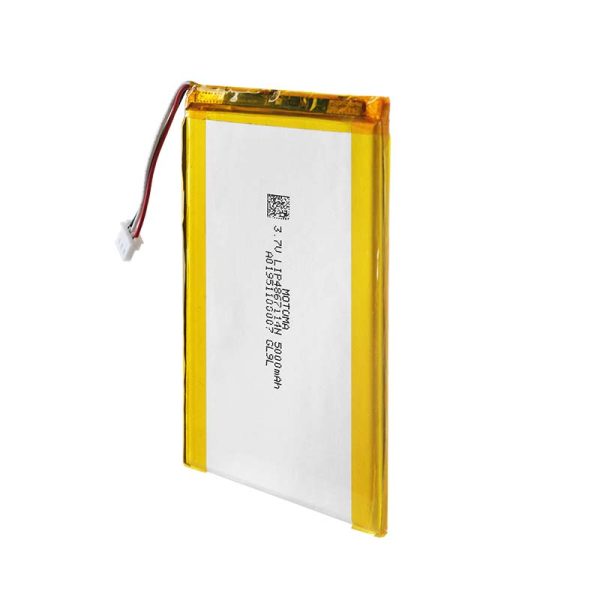

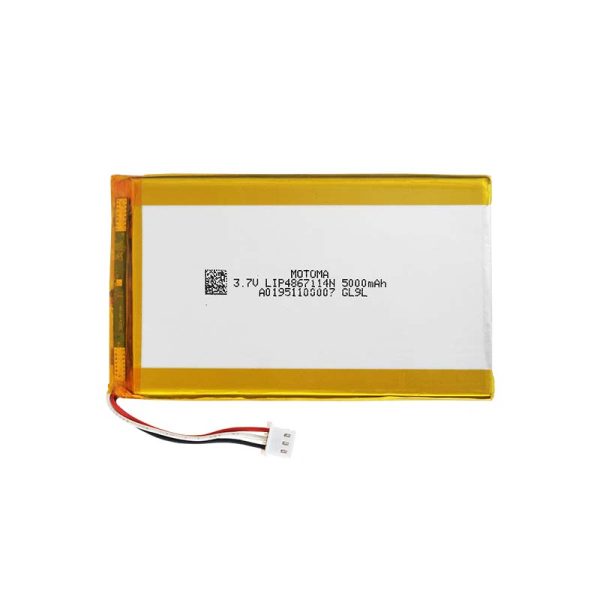

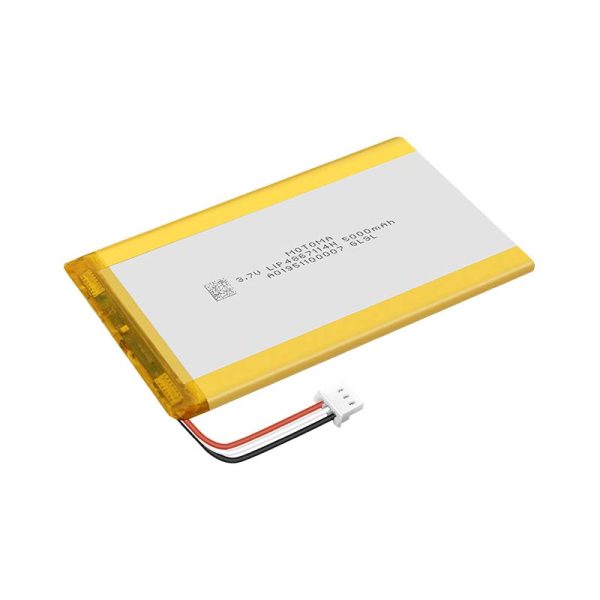

High Density Rechargeable Lipo Battery

  • Volume energy density can reach 500Wh/L – 620Wh/L
  • Excellent safety performance
  • Small and light-weight
  • In series connection or in parallel connection is allowed
  • UL,IEC62133,UN38.3,CB,CQC,PSE approved

Product Specification:

Battery model                                     LIP4867114
Nominal voltage                                           3.7V
Nominal capacity                                        5000mAh
Minimum capacity                                        5000mAh
Charging voltage                                          4.2V
Standard charging current                                   1000mA (0.2C)
End current                                   50mA (0.01C)
Max. charging current                                  2500mA (0.5C)
Standard discharging current                                   1000mA (0.2C)
Max. discharging current                                    5000mA (1C)
End voltage of discharge                                         3.0V
Dimension of cell                               4.8 x 67 x 114mm
Charging temperature range                                       0~45℃
Discharging temperature range                                    -20~60℃

Safety Performance:

  • Overcharge protection
  • Over-discharge protection
  • Discharge over-current protection
  • Short-circuit protection

Quality Management:

  • 100+ critical quality control points
  • 3 stages’ OCV grouping
  • 30+ performance test
  • Shelve at room temperature for 96 hours
  • Aging at 45℃ for 72 hours
  • Unique traceability system

Application Industries:

  • Digital products
  • Smart home products
  • Handheld terminals
  • Mother & Baby care products
  • Medical device

Certificates:

  • UL, CB, IEC62133, PSE, KC, CQC, UN38.3, MSDS, Reach, RoHS
  • All our sold batteries are underwritten by Ping An Property & Casualty Insurance company.
