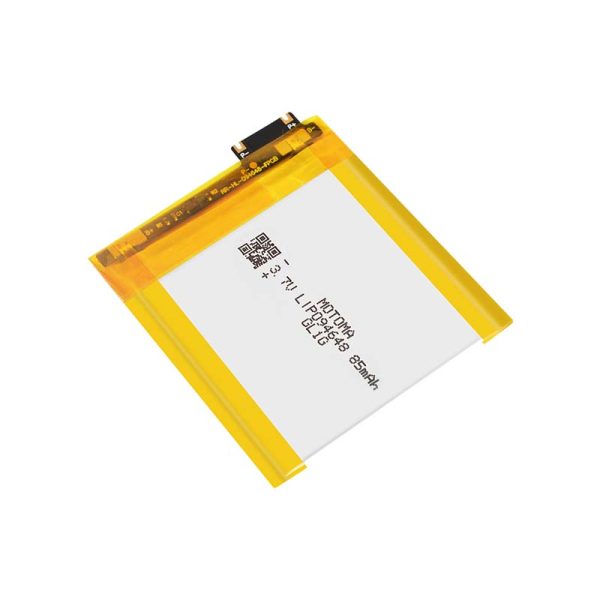

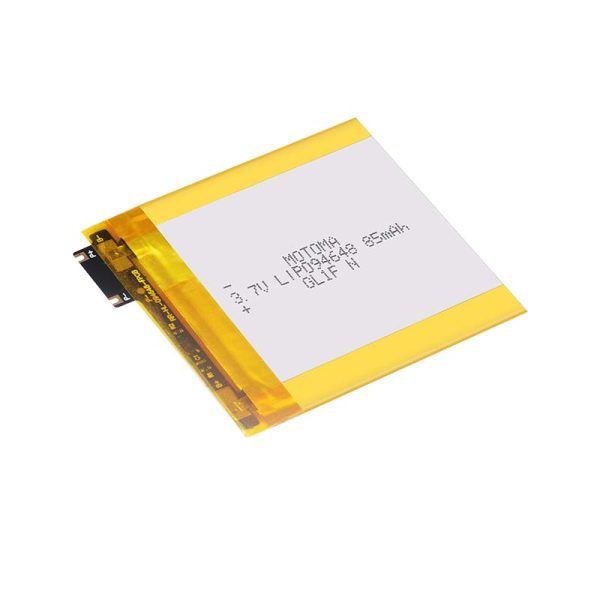

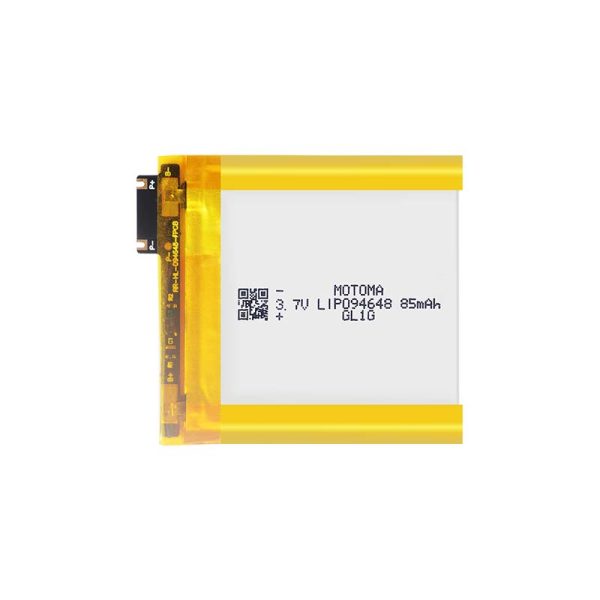

Ultra Thin Lithium Polymer Battery

  • Ultra-thin design.
  • High energy density.
  • Long lifespan.
  • Excellent safety.

Product Specification:

Battery modelLIP094648
Nominal voltage3.7V
Nominal capacity85mAh
Minimum capacity85mAh
Charging voltage4.2V
Standard charging current17mA (0.2C)
End current 0.85mA (0.01C)
Max. charging current42.5mA (0.5C)
Standard discharging current 17mA (0.2C)
Max. discharging current85mA (1C)
End voltage of discharge3.0V
Dimension of cell0.9 x 46 x 48mm
Charging temperature range0~45℃
Discharging temperature range-20~60℃

Safety Performance:

  • Overcharge protection
  • Over-discharge protection
  • Discharge over-current protection
  • Short-circuit protection

Quality Management:

  • 100+ critical quality control points
  • 3 stages’ OCV grouping
  • 30+ performance test
  • Shelve at room temperature for 96 hours
  • Aging at 45℃ for 72 hours
  • Unique traceability system

Application Industries:

  • Digital products
  • Smart home products
  • Handheld terminals
  • Mother & Baby care products
  • Medical device
  • Tracking device
  • Smart Labels

Certificates:

  • UL, CB, IEC62133, PSE, KC, CQC, UN38.3, MSDS, Reach, RoHS
  • All our sold batteries are underwritten by Ping An Property & Casualty Insurance company.
